Hellion 2015-2025 Ford F-150 5.0L Top-Mount “Mirror Image” Twin Turbo System

Hellion’s Innovative F150 Top-Mount “Mirror Image” Twin-Turbo System Delivers Upwards of 1700 Horsepower!

We are excited to announce the latest addition to our lineup of turbocharging systems for the Ford platform: the must-have modification for the F-150.

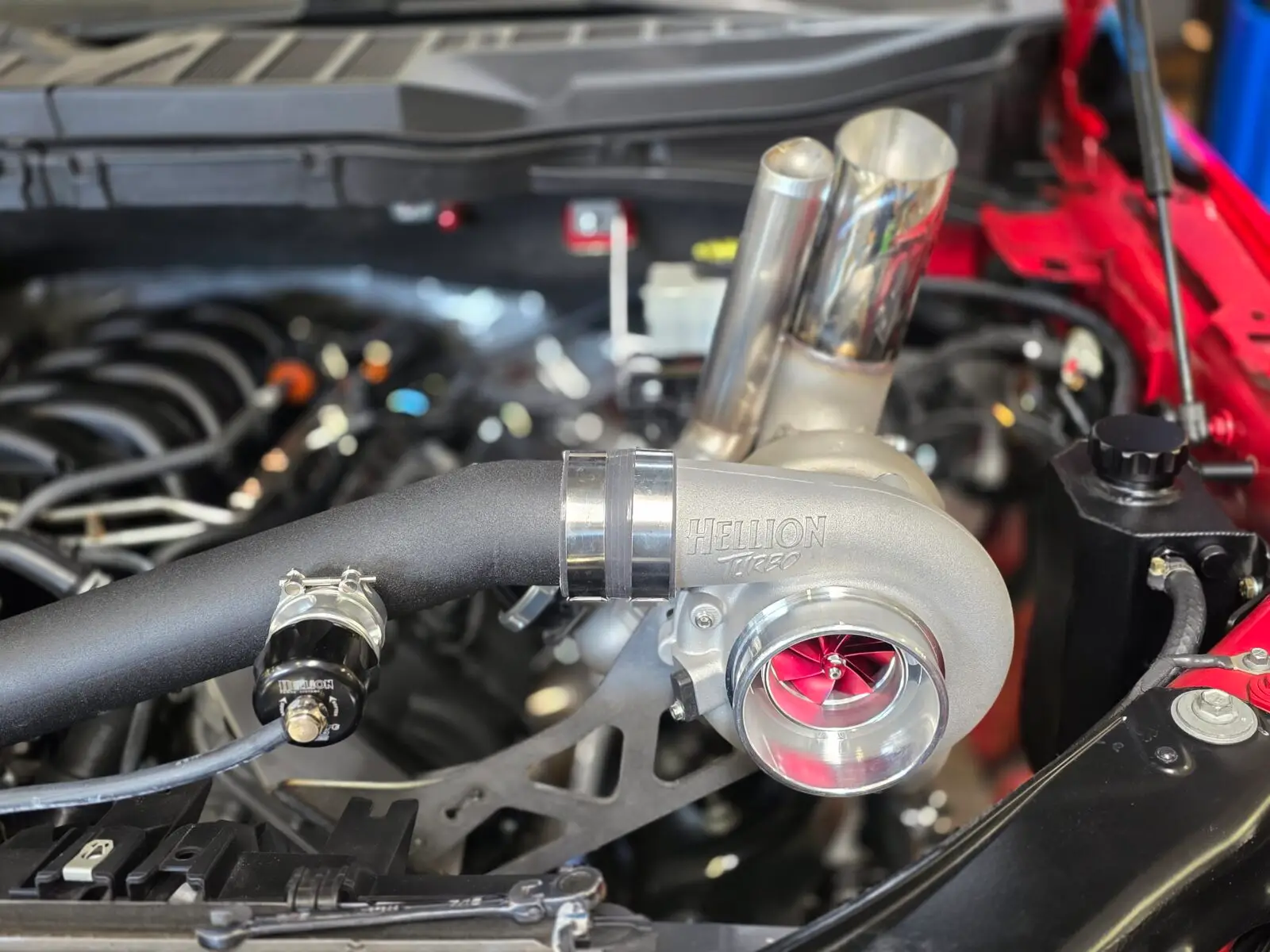

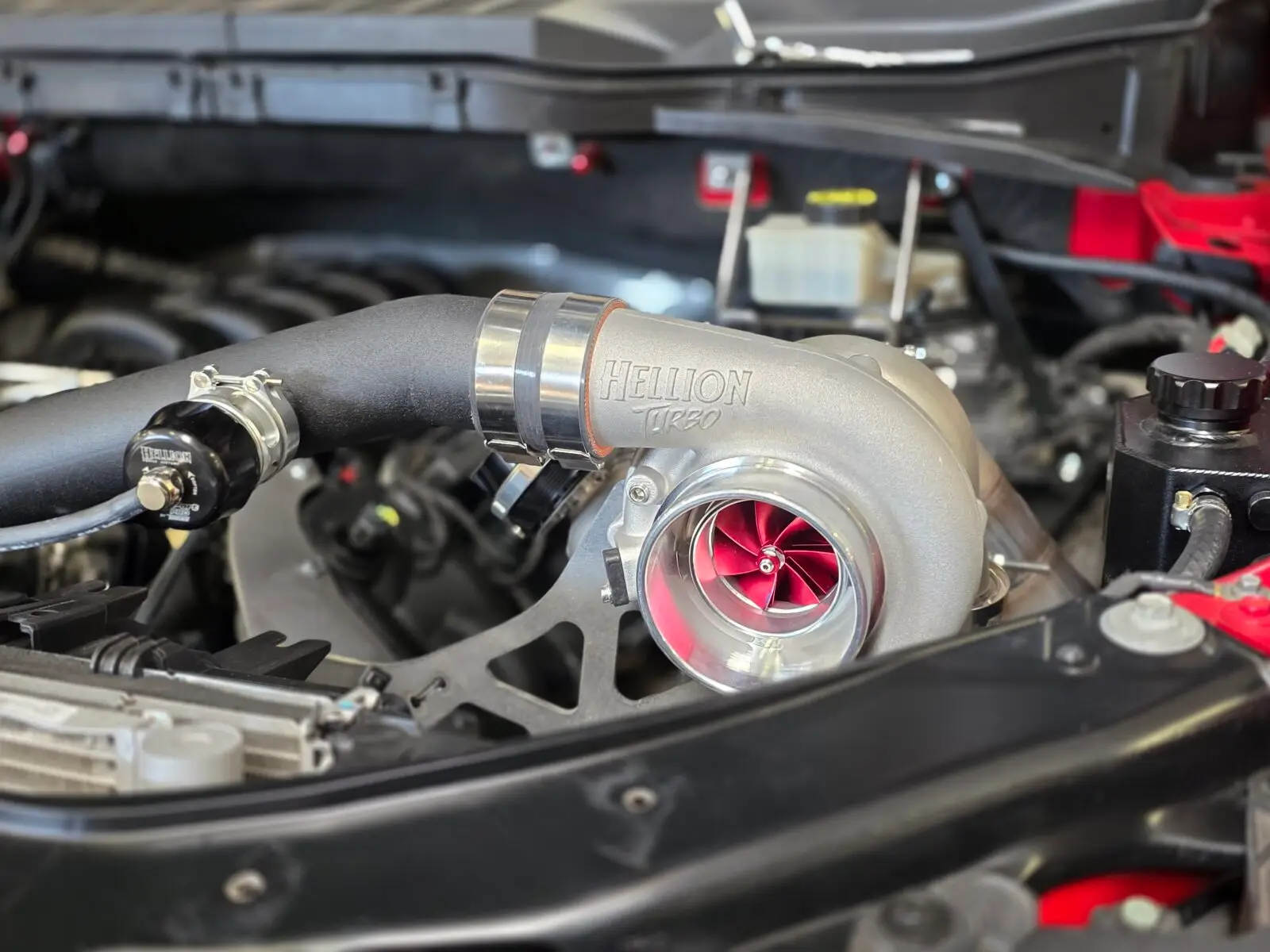

Building on our innovative Sleeper F-150 systems, we are introducing a true “mirror image” Top-Mount twin-turbo system.

“We have listened to our customers who desired a top-mount ‘Mirror image’ high-performance option for the Ford truck platform,” said John Urist, President of Hellion Turbo. “We were the first to have a top mount F150 system in 2013 (6.2L Raptor). This is a new system that also is a bolt-on and provides a true symmetrical, SEMA-quality look. ‘Mirror image’ means the driver-side turbo is reverse rotation and points inwards like the passenger turbo. It is a twin-turbo system that is fully adjustable from five to 30+ pounds of boost and offers performance levels ranging from 650 to over 1700+ horsepower! With help from renowned SEMA builders Tucci Hot Rods, even the bracket design was taken into consideration for the ultimate open hood look”

We have spent hundreds of hours designing the finest possible Top Mount kit for the F150. This system solves the issue of having hot downpipes next to the engine, as the piping is cleanly routed away from the center of the engine, allowing full access to spark plugs and other components. Installation can be performed by anyone with automotive mechanical knowledge or at a performance shop. The base system is a tuner kit and will require tuning and injectors. Hellion has a network of trusted shops that can be recommended upon request.

The standard system comes with Hellion 62R turbos, capable of over 1200 RWHP. Hellion offers turbo upgrades, including the very powerful 64mm for those seeking next level power.

As the innovators of Ford turbocharging, we already offer the Street Sleeper twin-turbo system for this platform. Now, whether you prefer a hidden or visible setup, Hellion Turbo has you covered with the must-have modification for your F-150 or Raptor.

Call or email our sales department with any questions, 505-873-4670  or email  [email protected]

Will be equipped with:

• Twin Hellion 62/62R turbochargers standard (64/66r optional)
• 4 into 1 American made stainless tubular headers standard
• High flow 5″ intercooler standard (massive 7″ intercooler optional)
• Dual Turbosmart HyperGate 45 wastegates standard
• Dual Turbosmart VEE Port Pro blow off valves standard
• All stainless American made tubing with v-band connections (lifetime warranty)
• OEM fit and finish-engineered by professionals with over 25 years experience
