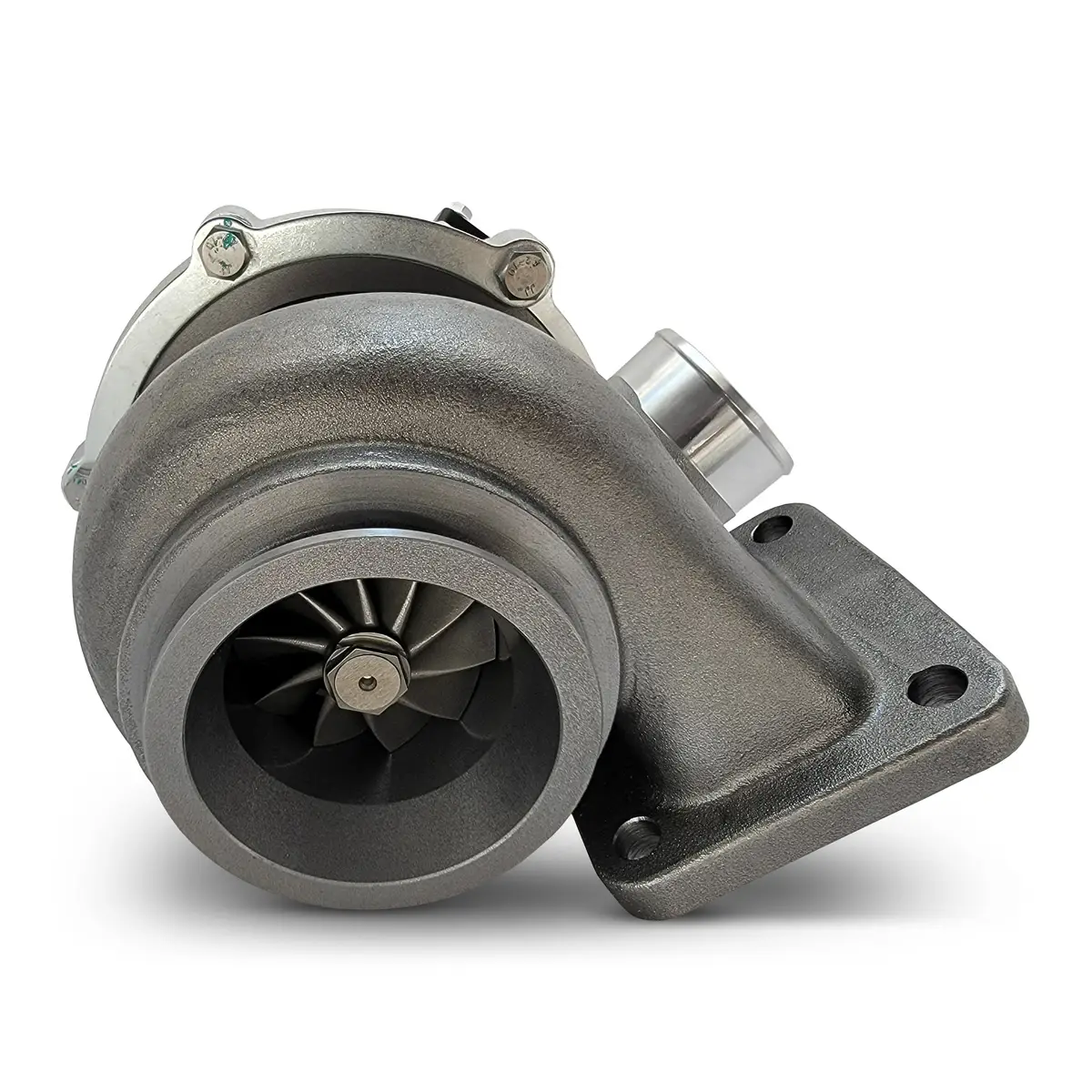

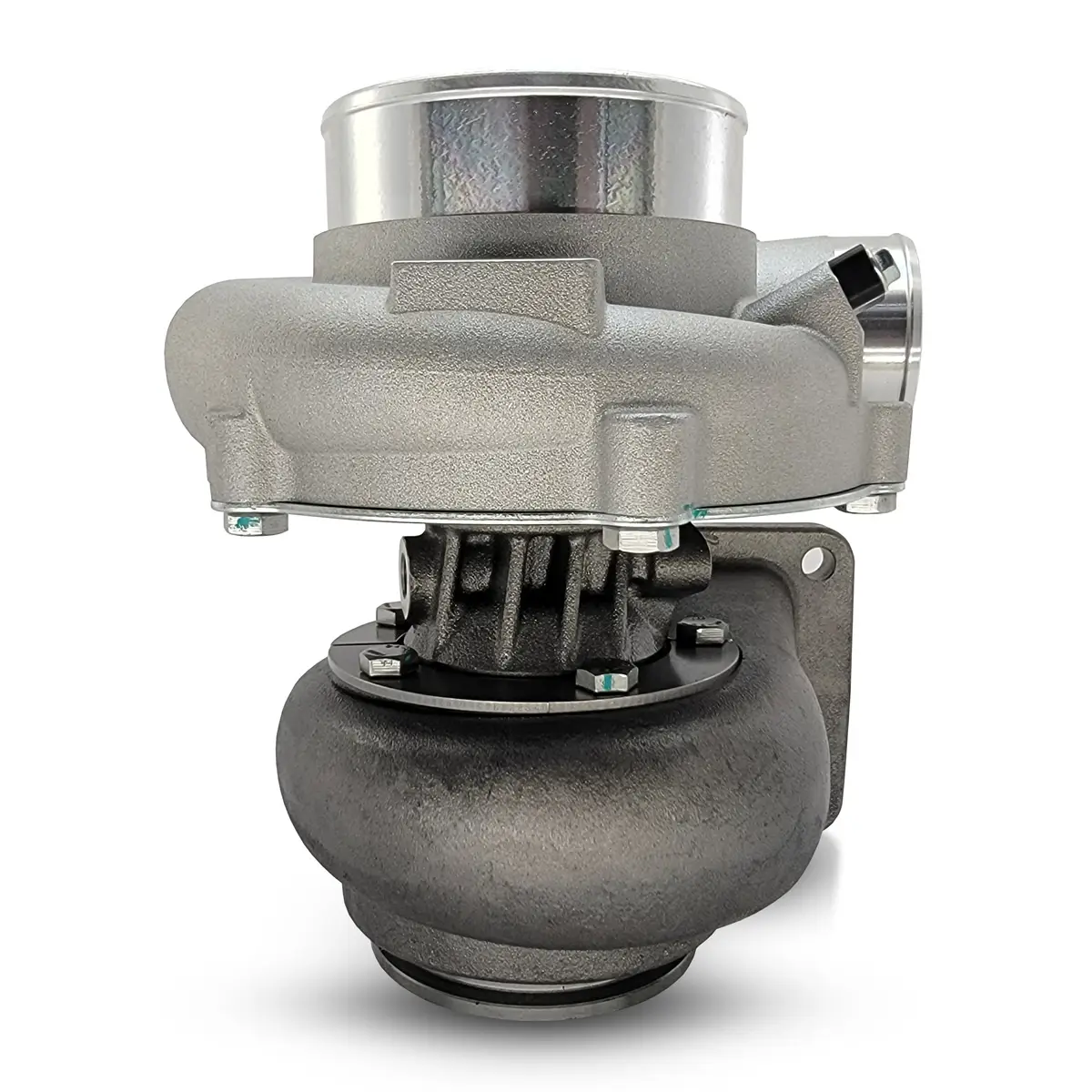

Hellion has released the new series of performance turbochargers with the B series. This lightweight turbo features a dual ball bearing air cooled center section and contains the latest affordable technology available.
B Series Compressor Features
- 11-blade billet compressor wheel that offers an affordable performance upgrade from our base cast wheel units.
- 4ā inlet and 2.5ā outlet compressor cover is modernized, enlarged and streamlined to efficiently process the increased flow. Easily interchanged with other common turbos of this frame size ā with increased performance.
- Integrated speed sensor port.
- Modernized dual ball bearing air cooled iron bearing housing with integral backplate to resist compressor back plate deflection under heavy loads.
B Series Turbine Features
- High-flow 62mm turbine wheel and industry standard high performance turbine housing to maximize the inlet and outlet exhaust flow.
- 4-bolt inlet / 3ā³ v-band outlet / .81 A/R single scroll cast iron T4 turbine housing.
Specifications
| Max HP | 790 |
|---|---|
| Bearing Type | Ball |
| Compressor Inducer (MM) | 62 |
| Ported Shroud | Yes |
| Turbine Exducer (MM) | 62 |
| Turbine Inlet | T4 |
| Turbine Outlet | V-Band |
| Turbine A/R | 0.81 |
| Turbine Scroll | Single |
