Whipple 2018-2023 Mustang/2018-2025 F150/2018-2026 GT500/2023-2025 Raptor R 132m
WTB-1900E-FRD3

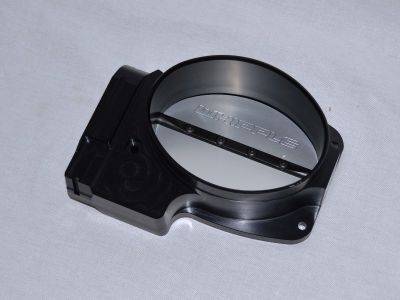

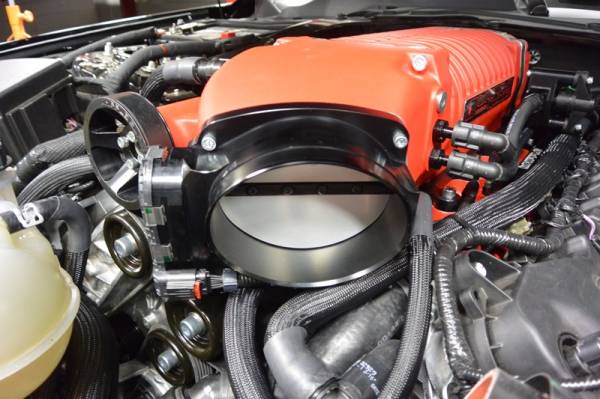

As airflow demands increase in supercharged Ford applications, Whipple offers a billet-machined 132mm elliptical digital throttle body designed for 2018-2023 Ford Mustang and F-150 5.0L platforms using Whipple supercharger systems. This throttle body is rated at over 2000 CFM of airflow and is engineered to bolt directly to the Whipple supercharger inlet housing.
Often referred to as the "Roval" due to its elliptical blade design, this throttle body provides increased airflow while maintaining electronic throttle control. It reuses the factory electronic throttle motor and comes pre-flowed, pre-set, and supplied with electronics pre-installed to support repeatable idle characteristics when properly tuned.
PERFORMANCE NOTES:
- Gains of nearly 40 horsepower reported on Whipple Mustang and F-150 supercharger systems at standard boost levels
- Power gains of nearly 200 horsepower observed on modified engines with increased boost and airflow demand
NOTE:Ā These throttle bodies require special or custom tuning. If replacing a factory 80mm throttle body on a 2018 and newer Mustang or F-150, the kit version is required to provide the correct plastic air inlet tube and silicone hose.
Original: $1,168.25
-65%$1,168.25
$408.89Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
WTB-1900E-FRD3
As airflow demands increase in supercharged Ford applications, Whipple offers a billet-machined 132mm elliptical digital throttle body designed for 2018-2023 Ford Mustang and F-150 5.0L platforms using Whipple supercharger systems. This throttle body is rated at over 2000 CFM of airflow and is engineered to bolt directly to the Whipple supercharger inlet housing.
Often referred to as the "Roval" due to its elliptical blade design, this throttle body provides increased airflow while maintaining electronic throttle control. It reuses the factory electronic throttle motor and comes pre-flowed, pre-set, and supplied with electronics pre-installed to support repeatable idle characteristics when properly tuned.
PERFORMANCE NOTES:
- Gains of nearly 40 horsepower reported on Whipple Mustang and F-150 supercharger systems at standard boost levels
- Power gains of nearly 200 horsepower observed on modified engines with increased boost and airflow demand
NOTE:Ā These throttle bodies require special or custom tuning. If replacing a factory 80mm throttle body on a 2018 and newer Mustang or F-150, the kit version is required to provide the correct plastic air inlet tube and silicone hose.
