VTT Billet Large Frame 8HP90/95 ZF8HP Large Capacity Transmission Pan

VTT-LF-ZF8HP-PAN

Description

VTT Billet ZF8HP (8HP90/95) Large-Frame 8-Speed Transmission Pan

VTT is proud to offer our Billet Aluminum ZF8HP Large-Frame Transmission Pan, designed specifically for 8HP90 and 8HP95 applications found in high-horsepower platforms such as Hellcat, Trackhawk, and TRX.

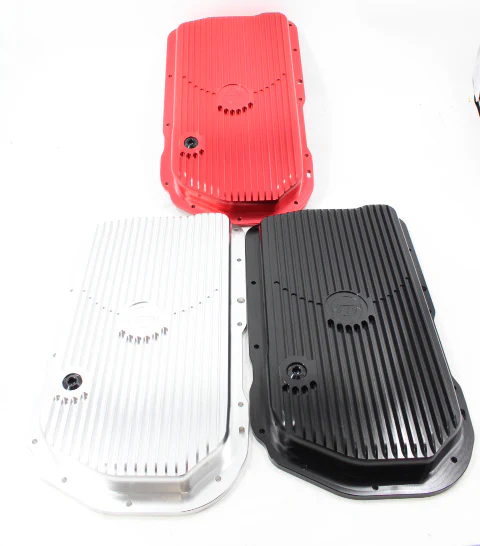

CNC-machined from 6061-T6 aluminum and anodized in multiple colors, this pan delivers increased strength, improved cooling, and enhanced serviceability over the factory plastic or cast units. With increased fluid capacity and premium sealing, it’s built to handle the demands of high-power street and track builds.

---

Key Features

 6061-T6 Billet Construction
Stronger, more durable, and precision-machined to replace failure-prone factory pans.

 Increased Fluid Capacity
Additional fluid capacity over stock for improved thermal stability under high load.

 Improved Cooling

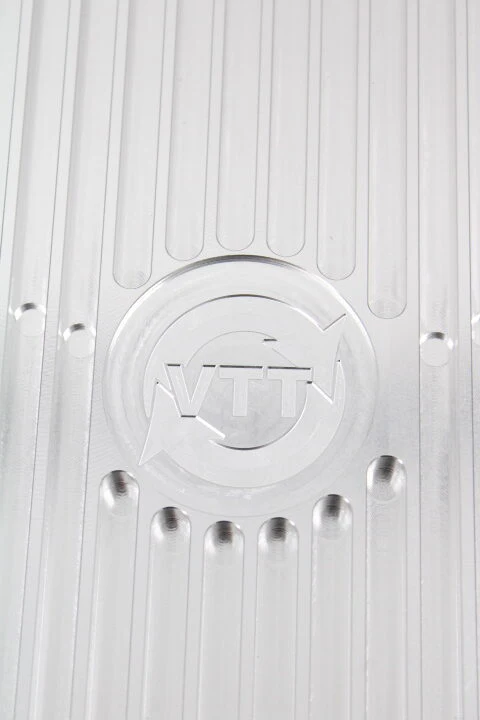

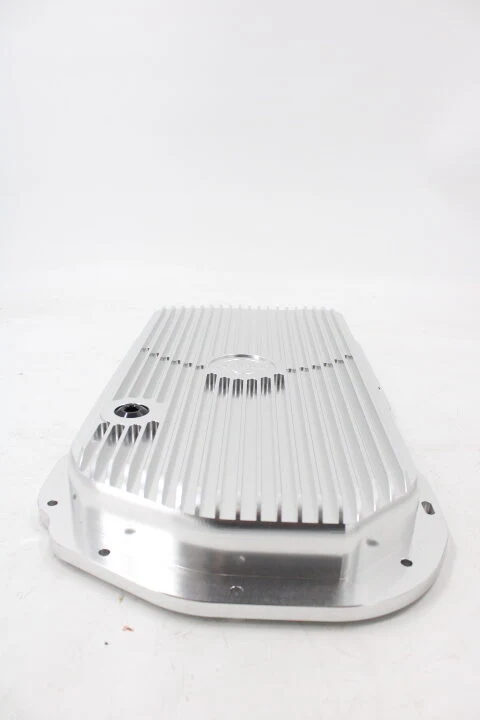

Machined external fins help dissipate heat and stabilize transmission temps.

 Integrated Magnet System

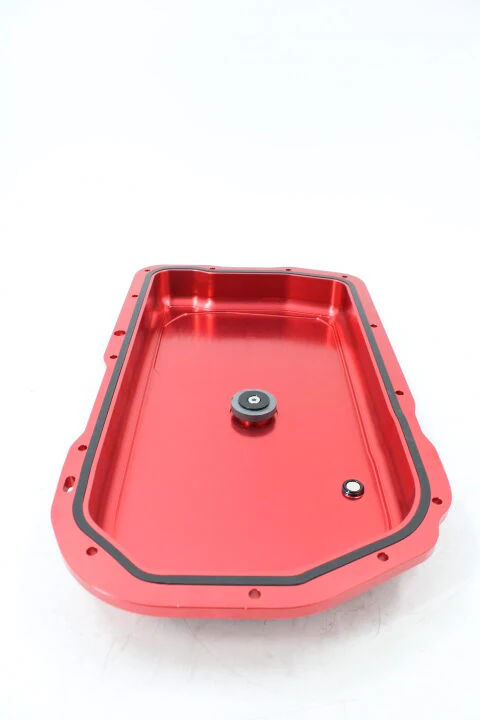

Rare-earth magnet captures metal debris while supporting proper filter positioning.

 Premium Seal
Reusable US-made Viton gasket ensures a reliable, leak-free seal.

 Easy Serviceability
-6 ORB magnetic drain plug allows for clean, controlled fluid changes.

 Anodized Finish
Corrosion-resistant and available in multiple colors.

---

Designed for High Power Applications

Unlike smaller ZF8HP variants, the 8HP90/95 platforms operate under significantly higher torque loads and fluid demands. This pan is engineered to support those conditions with improved capacity, cooling, and durability.

---

Clearance Notes

• Designed for large-frame ZF8HP applications (8HP90 / 8HP95)
• RWD applications (Hellcat Charger/Challenger) – direct fitment
• AWD applications (Trackhawk, TRX, Durango Hellcat) – confirm clearance with crossmembers and transfer case components prior to installation
• No reduction in ground clearance compared to OEM cast pans (verify per application)

---

Kit Includes

• (1) VTT Billet Large-Frame ZF8HP Pan

---

Fitment

ZF 8HP90 / 8HP95 Applications Including:

• Dodge Challenger SRT Hellcat / Redeye / Demon
• Dodge Charger SRT Hellcat
• Jeep Grand Cherokee Trackhawk
• Ram TRX
• Dodge Durango SRT Hellcat

---

Important Note

This pan is NOT compatible with small or mid-frame ZF8HP transmissions (40/50/51/55/65/70/75/76).
For those applications, please see our standard ZF8HP billet pan listing.

---

The Bottom Line

The factory large-frame ZF8HP pans were never designed for the sustained demands of modern high-horsepower builds.

VTT delivers a billet solution built to handle the power.
