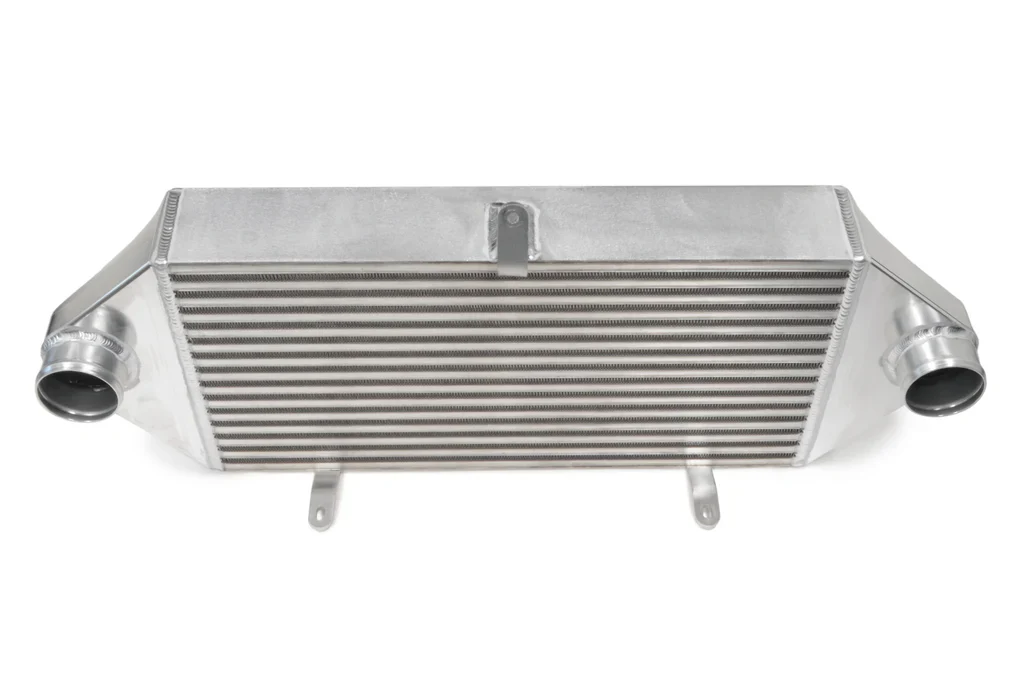

STM 1000HP Front Mount Intercooler with Billet End Tanks for 1G DSM

STM-1GDSM-FMIC

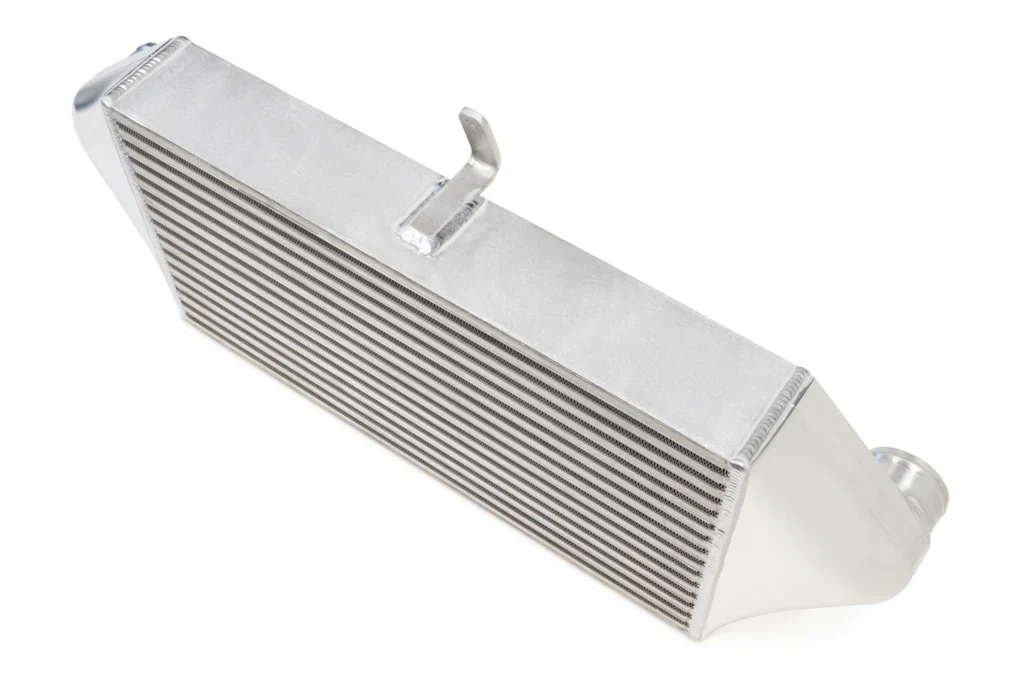

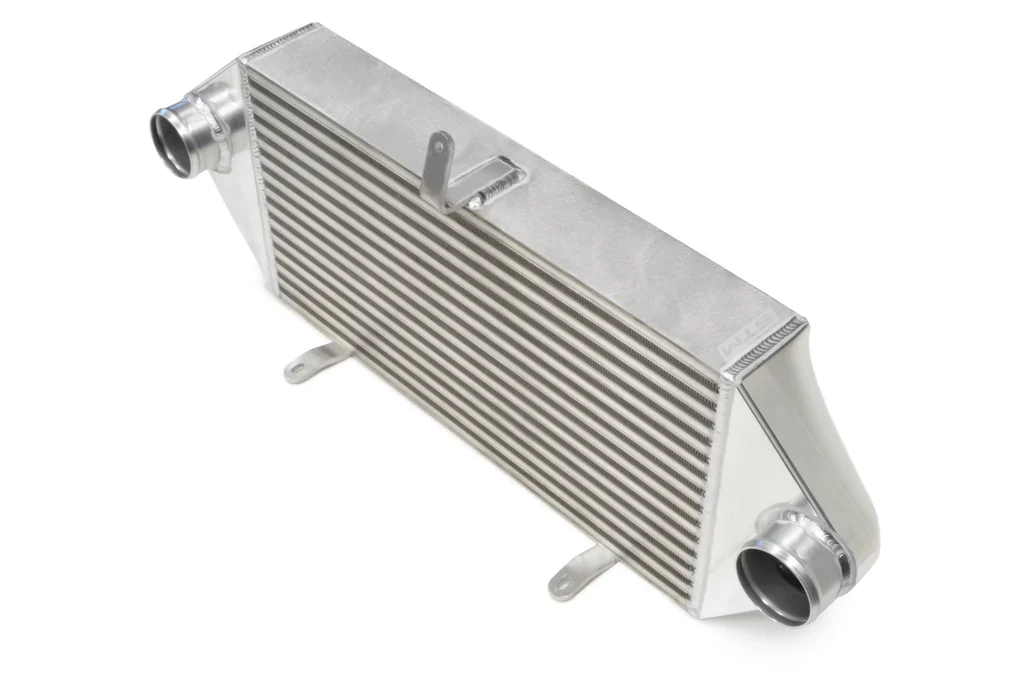

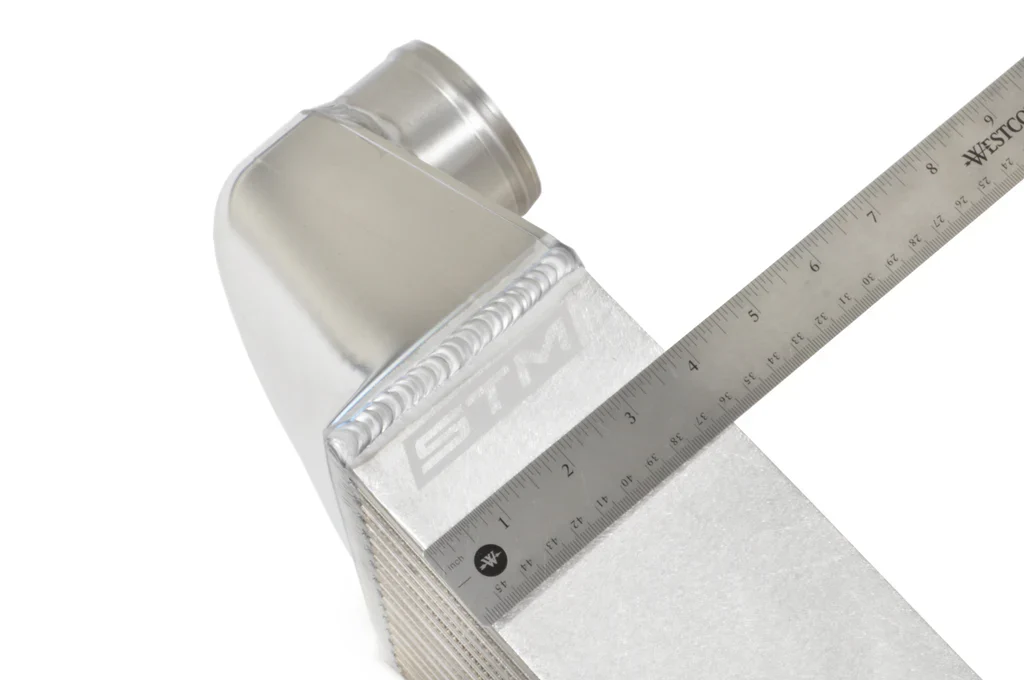

The STM 1G DSM intercooler is made in-house using a 1000 HP rated 3.8" Garrett core. The Billet end tanks are tig welded to the core and pressure tested to 50 PSI before it leaves.

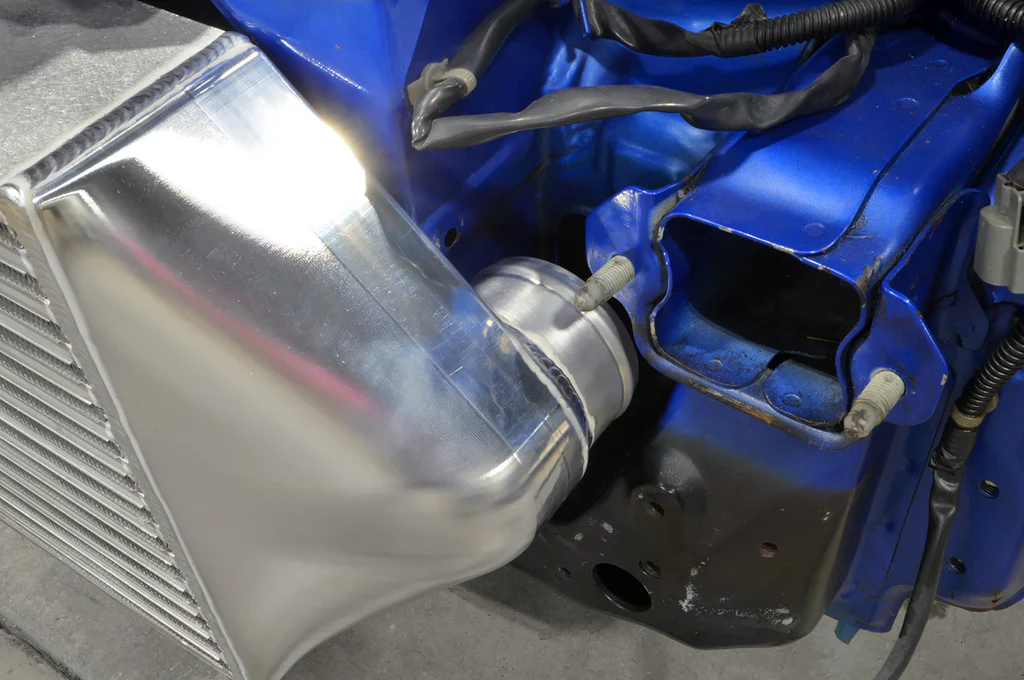

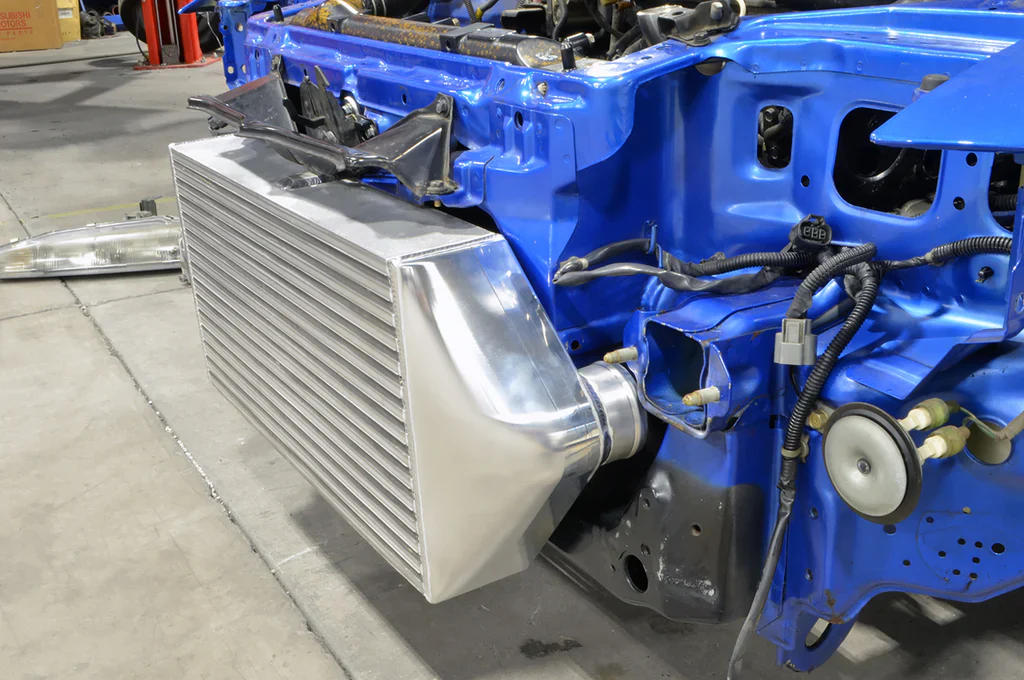

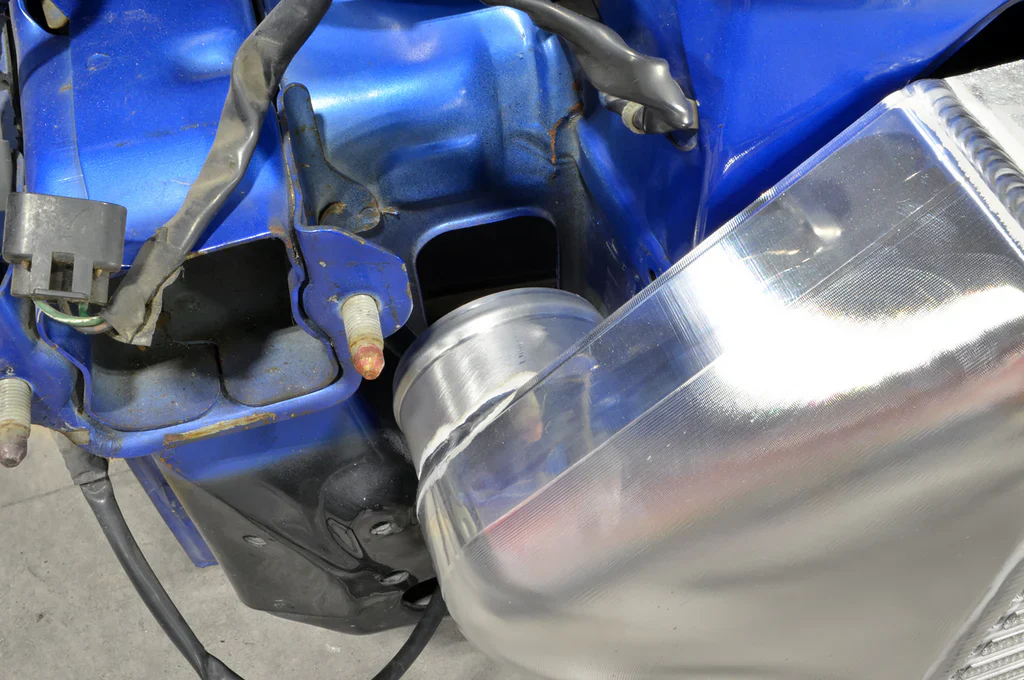

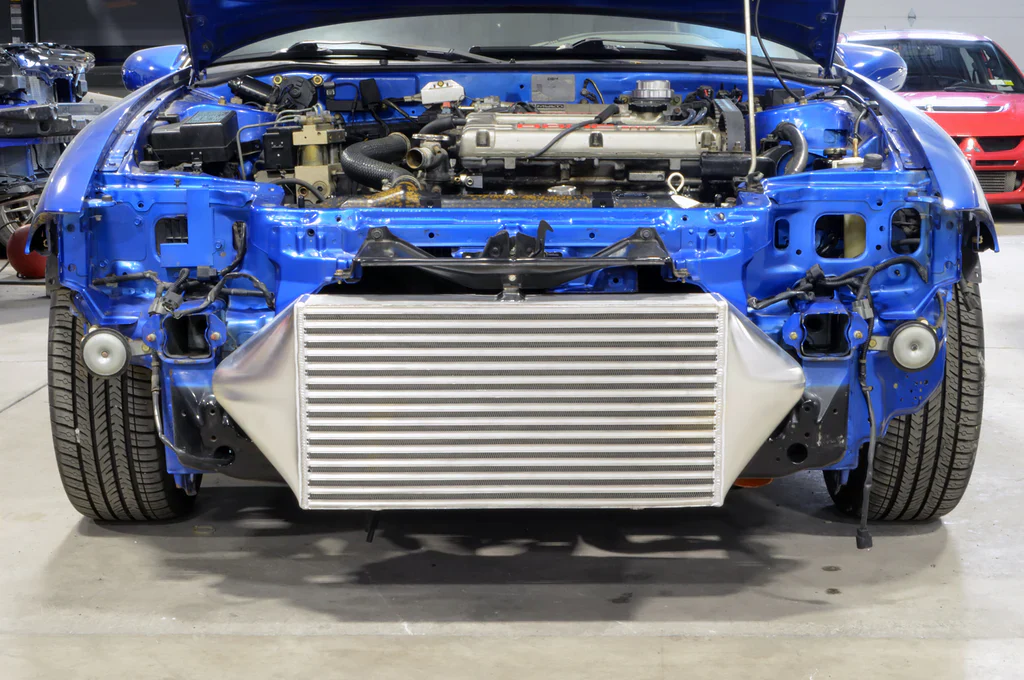

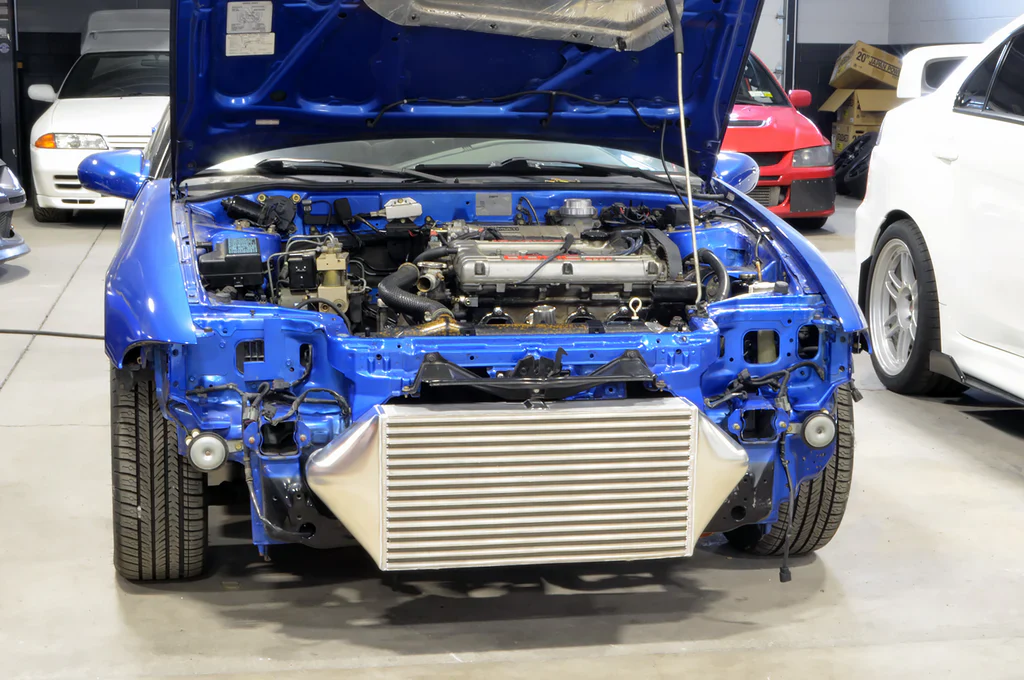

This Intercooler will fit with 1GA and 1GB front bumpers, but WILL require some trimming of the bumper and radiator support for intercooler piping. This intercooler bolts into factory locations - no drilling required, but you will need custom intercooler piping.

Vehicle Fitment:
1990-1994 Eclipse GST/GSX
1990-1994 Talon TSi
1990-1994 Laser RS

Install Notes:
* Trimming of the bumper and radiator support is required
* You will need custom intercooler piping
* Does not fit stock piping

Features:
• 1000 HP Rated 3.8" Garrett Core
• STM Billet End Tanks
• Tig Welded

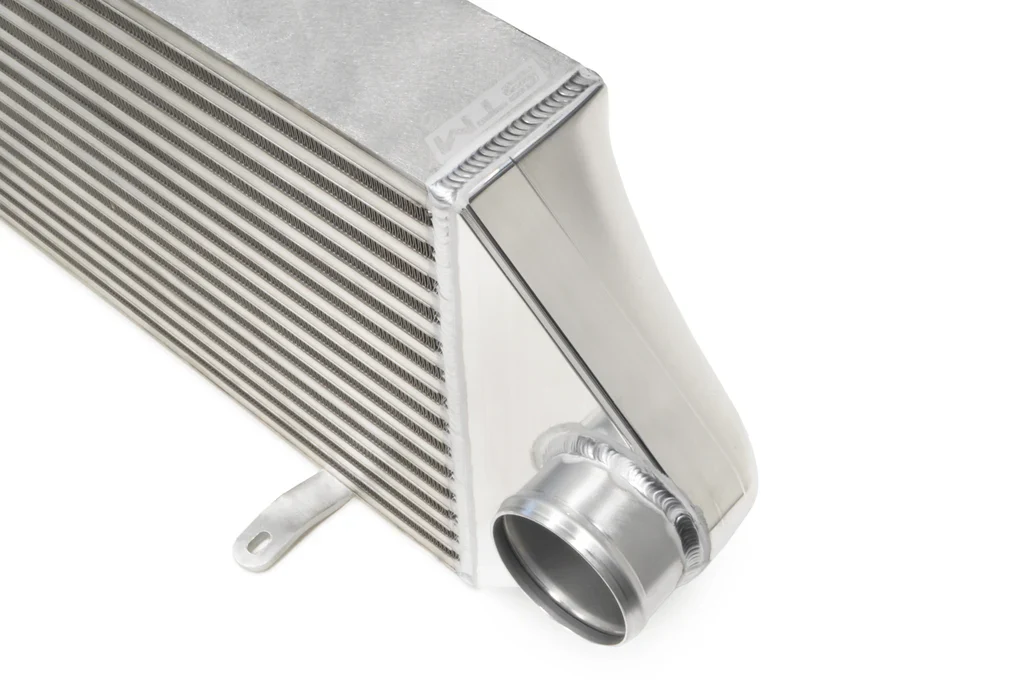

• 3" Bead-Rolled Inlet/Outlet
• Pressure tested to 50 psi
• Laser engraved STM logo
• Weighs 27.90 pounds
• STM Products are made in the USA!
• Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects

Purchase Includes:
(1) STM Intercooler

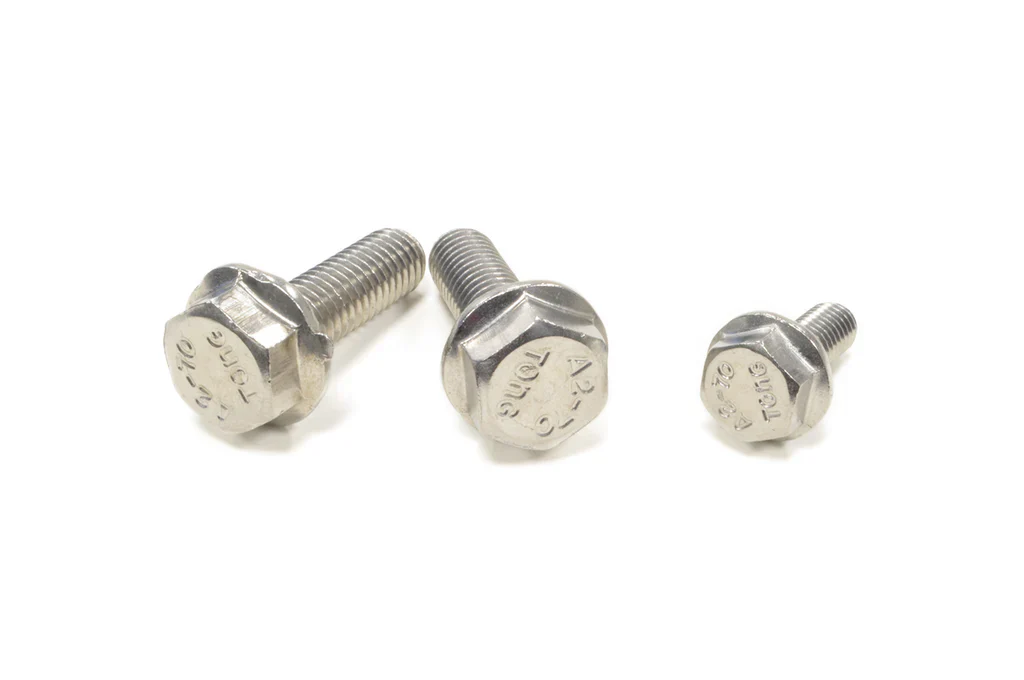

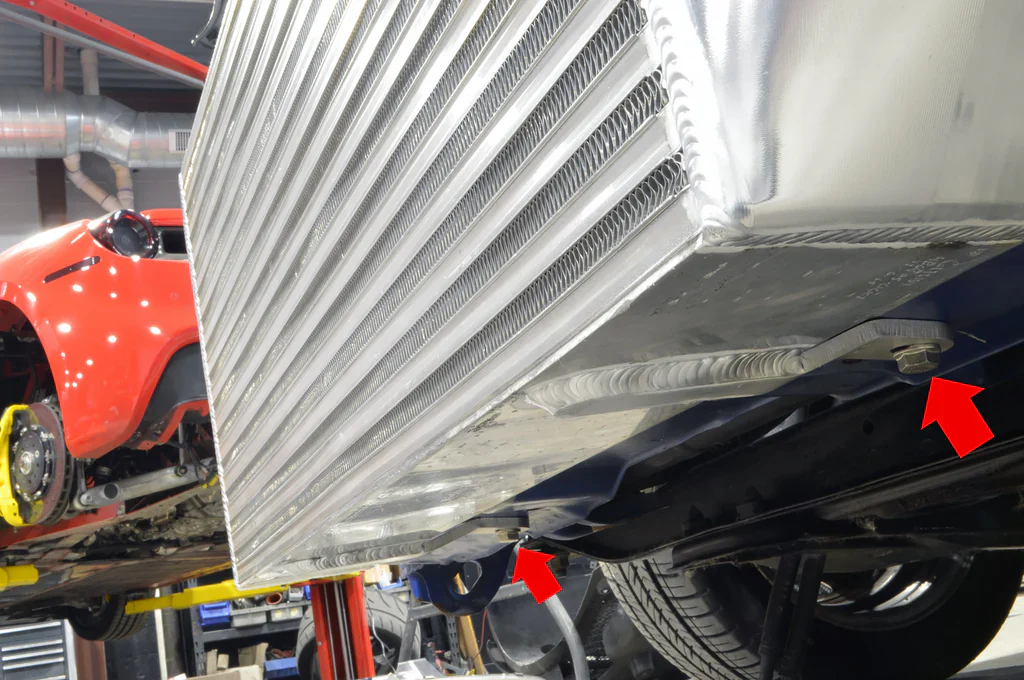

(2) M8x28 Bolts (for bottom brackets)

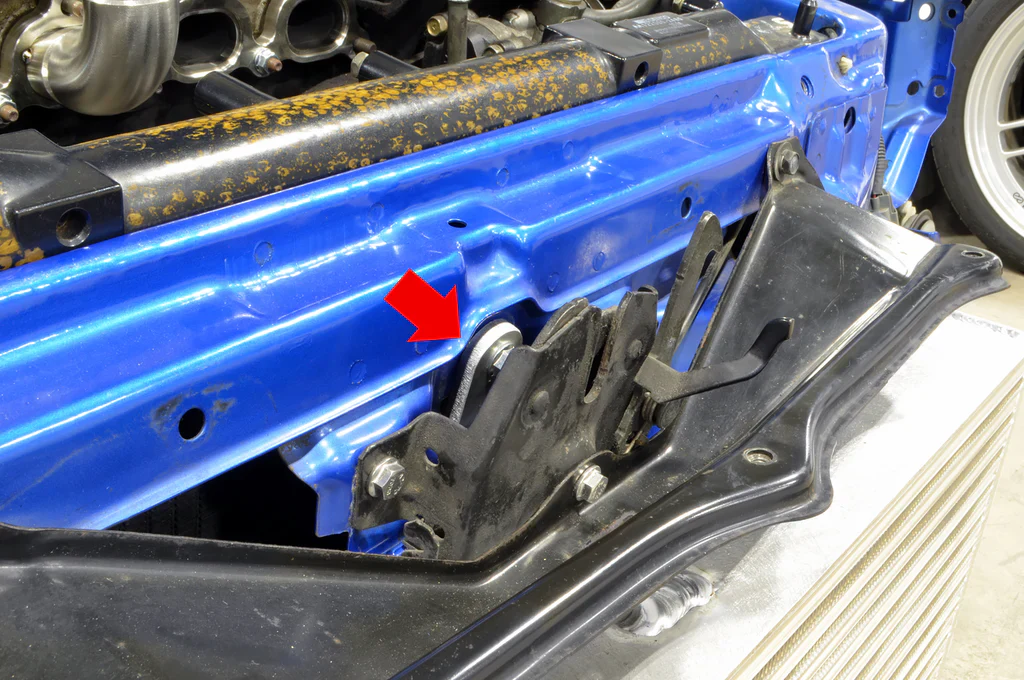

(1) M6x16 Bolt (for top bracket)
