Ringer Racing Clutch/Flywheel kit – Audi B8 2.0T

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing



Applications:

• Audi A4 2.0T (2009-2016)
• Audi A5 2.0T (2010-2016)

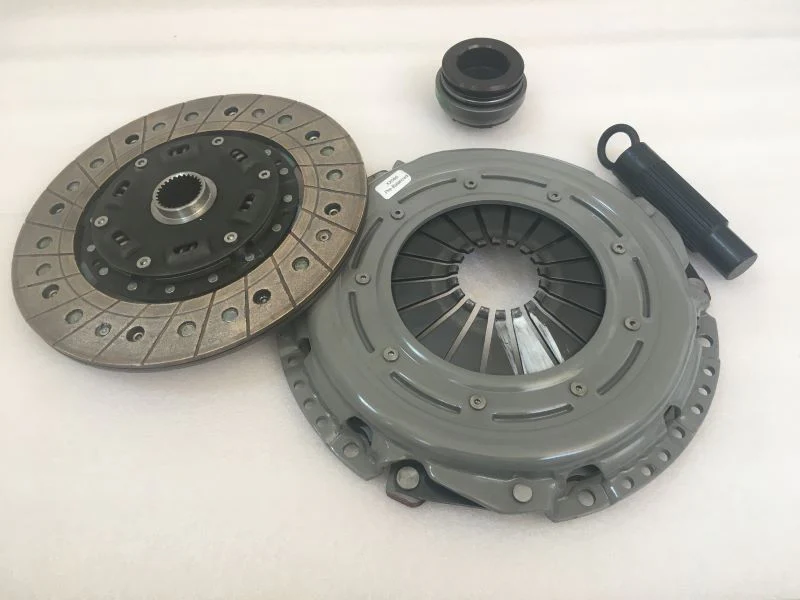

Kit includes:

• Ringer Racing Clutch Kit
• Clutch Masters Flywheel
• Throw-out Bearing
• Alignment tool





Stage 3

• Heavy-duty street & racing system

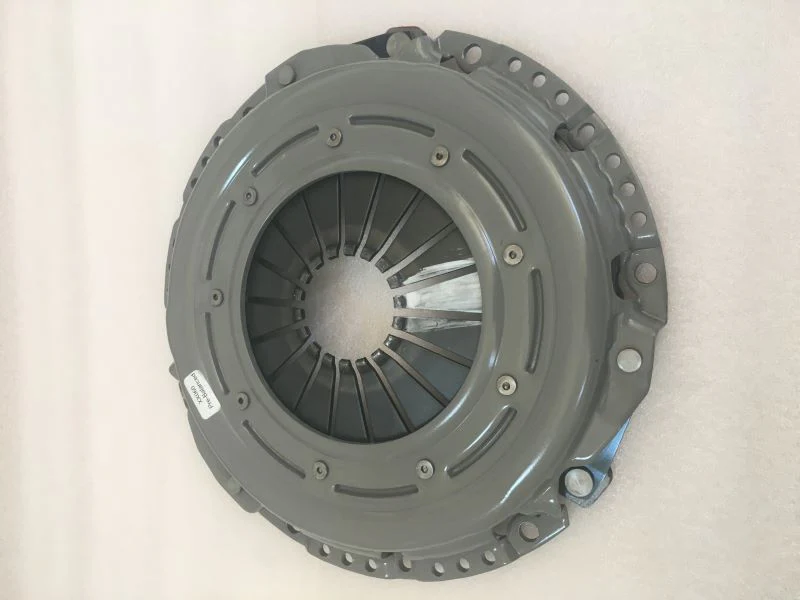

• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Ductile Iron Casting
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material



Stage 3+

• Modified pressure plate for 8% more clamping load
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Steel backed Organic/Cerametalic Material
• Slightly stiffer pedal



Stage 4

• Heavy-duty street & racing system
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides



Stage 5

• Modified pressure plate for 8% more clamping load
• Heavy-Duty reinforced pressure plate
• Hi-Leverage pressure ring design
• Sprung hub/cushioned Steel backed disc
• Full Face Cerametalic Material on both sides
• Slightly stiffer pedal



Torque Rating at the Flywheel

• Stage 3 – 510 ft lbs
• Stage 3+ – 550 ft lbs
• Stage 4 – 630 ft lbs
• Stage 5 – 680 ft lbs



Hydraulic Option:

• Stainless Clutch Line for stock slave cylinder
• Clutch Masters billet slave cylinder kit with clutch line



Flywheel Options:

• Steel Flywheel = 28 lbs
• Billet Steel Flywheel with Billet Insert = 25.5 lbs
