Ringer Racing Clutch & Flywheel Conversion Kit – AAN/7A with 016

Ringer Racing Clutch & Flywheel Conversion Kit – AAN/7A with 016

RR772-SF

Kit includes:

  • RR Clutch Kit
  • RR Steel Flywheel with dual trigger
  • Throw-out Bearing
  • Alignment tool
  • Flywheel/PP Bolts

NOTE: AAN/7A while using the Audi 016 transmission

Description

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing



NOTE: Specifically designed for AAN/7A while using the Audi 016 transmission



Kit includes:

  • Ringer Racing Clutch kit

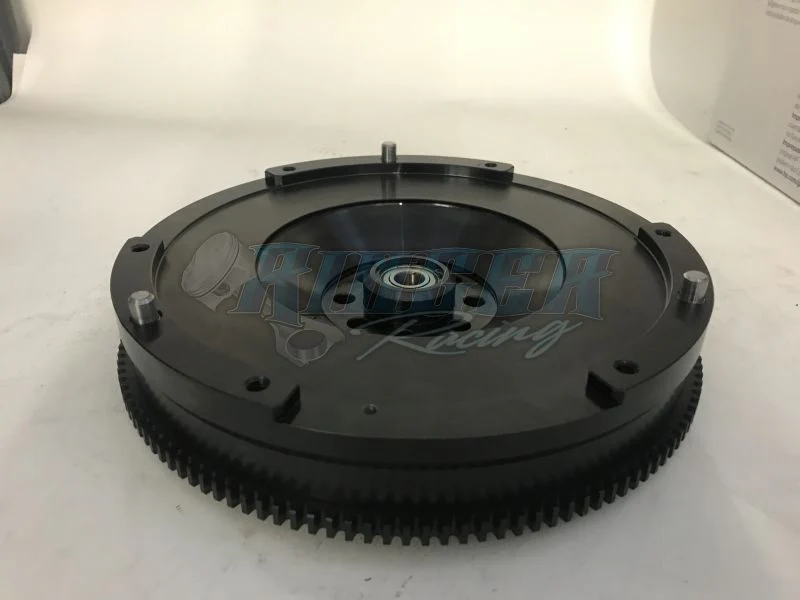

  • Ringer Racing Billet Steel Flywheel with dual trigger (pin and 60-2)
  • Throw-out Bearing
  • Alignment tool
  • Flywheel/PP Bolts



Stage 3

  • Heavy-duty street & racing system

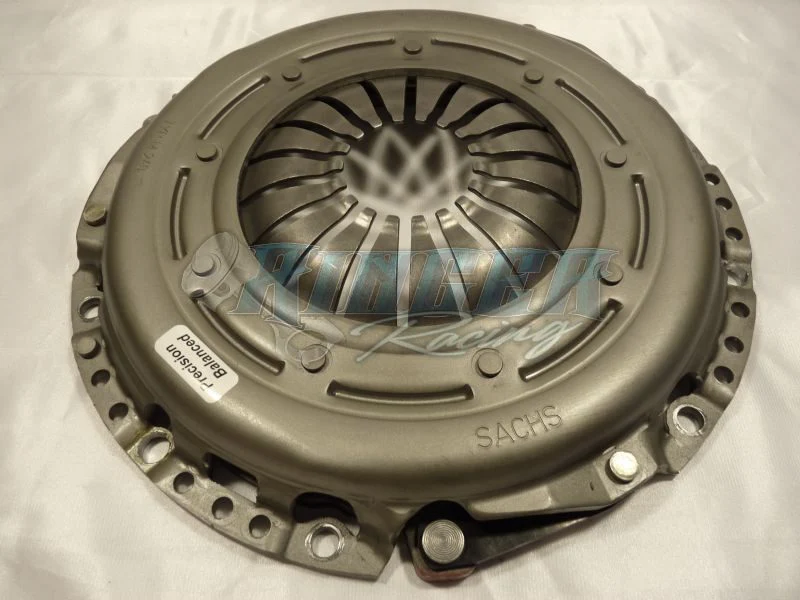

  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametallic Material
  • OEM 2.7t Pedal feel


Stage 3+

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametallic Material
  • B7 RS4 pedal feel


Stage 4

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametallic Material on both sides
  • OEM 2.7t Pedal feel


Stage 5

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametallic Material on both sides
  • B7 RS4 pedal feel


Stage 5+

  • Modified Stage 5 pressure plate for 8% more clamping load
  • Holding capacity 300% over stock
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametallic Material on both sides
  • Slightly stiffer pedal then the stage 5





Torque Rating at the Flywheel

  • Stage 3 – 585 ft lbs
  • Stage 3+ – 700 ft lbs
  • Stage 4 – 840 ft lbs
  • Stage 5 – 925 ft lbs
  • Stage 5+ – 1000 ft lbs



Note: Bolt torque specs
Flywheel bolts = 70 ft lbs
Pressure plate bolts = 25 ft lbs
Dab of loctite on all bolts



*Flywheel Friction Lock
Keep your high-performance engine protected with Flywheel Friction Locks or FFLs for short, by Clutch Masters. Designed to prevent costly damage that can occur when a flywheel comes loose, the Flywheel Friction Lock uses an advanced nickel-coated steel substrate with partially embedded diamond particles to create an extra layer of vastly increased friction between the flywheel and crank. This innovative solution minimizes your risk of the flywheel welding itself to the crankshaft if it comes loose, which can save you from extensive repairs or even crankshaft replacement.

Whether you’re driving a racing car or a tuned street vehicle, having a secure flywheel is essential for maintaining peak performance. By installing the Flywheel Friction Lock, you safeguard your engine’s crank against wear and tear for a smoother, more reliable driving experience. With precision engineering and trusted durability, Clutch Masters’ Flywheel Friction Lock is the smart investment every car enthusiast needs to truly protect their powertrain.

Don’t wait for damage to wreak havoc on your vehicle. Upgrade with Flywheel Friction Locks today and drive with confidence.

Select Ringer Racing Clutch Kit
Select Flywheel Bolts
Select Flywheel Friction Lock
From $774.06

Original: $2,211.61

-65%
Ringer Racing Clutch & Flywheel Conversion Kit – AAN/7A with 016—

$2,211.61

$774.06

Product Information

Shipping & Returns

Description

RR772-SF

Kit includes:

  • RR Clutch Kit
  • RR Steel Flywheel with dual trigger
  • Throw-out Bearing
  • Alignment tool
  • Flywheel/PP Bolts

NOTE: AAN/7A while using the Audi 016 transmission

Description

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing



NOTE: Specifically designed for AAN/7A while using the Audi 016 transmission



Kit includes:

  • Ringer Racing Clutch kit
  • Ringer Racing Billet Steel Flywheel with dual trigger (pin and 60-2)
  • Throw-out Bearing
  • Alignment tool
  • Flywheel/PP Bolts



Stage 3

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametallic Material
  • OEM 2.7t Pedal feel


Stage 3+

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametallic Material
  • B7 RS4 pedal feel


Stage 4

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametallic Material on both sides
  • OEM 2.7t Pedal feel


Stage 5

  • Heavy-duty street & racing system
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametallic Material on both sides
  • B7 RS4 pedal feel


Stage 5+

  • Modified Stage 5 pressure plate for 8% more clamping load
  • Holding capacity 300% over stock
  • Heavy-Duty reinforced pressure plate
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametallic Material on both sides
  • Slightly stiffer pedal then the stage 5





Torque Rating at the Flywheel

  • Stage 3 – 585 ft lbs
  • Stage 3+ – 700 ft lbs
  • Stage 4 – 840 ft lbs
  • Stage 5 – 925 ft lbs
  • Stage 5+ – 1000 ft lbs



Note: Bolt torque specs
Flywheel bolts = 70 ft lbs
Pressure plate bolts = 25 ft lbs
Dab of loctite on all bolts



*Flywheel Friction Lock
Keep your high-performance engine protected with Flywheel Friction Locks or FFLs for short, by Clutch Masters. Designed to prevent costly damage that can occur when a flywheel comes loose, the Flywheel Friction Lock uses an advanced nickel-coated steel substrate with partially embedded diamond particles to create an extra layer of vastly increased friction between the flywheel and crank. This innovative solution minimizes your risk of the flywheel welding itself to the crankshaft if it comes loose, which can save you from extensive repairs or even crankshaft replacement.

Whether you’re driving a racing car or a tuned street vehicle, having a secure flywheel is essential for maintaining peak performance. By installing the Flywheel Friction Lock, you safeguard your engine’s crank against wear and tear for a smoother, more reliable driving experience. With precision engineering and trusted durability, Clutch Masters’ Flywheel Friction Lock is the smart investment every car enthusiast needs to truly protect their powertrain.

Don’t wait for damage to wreak havoc on your vehicle. Upgrade with Flywheel Friction Locks today and drive with confidence.
