Ringer Racing Billet Series Clutch Kit – A4/Passat 1.8t

Ringer Racing Billet Series Clutch Kit – A4/Passat 1.8t

RR240-BSC

Package includes:

  • Ringer Racing 240mm Billet Series Clutch

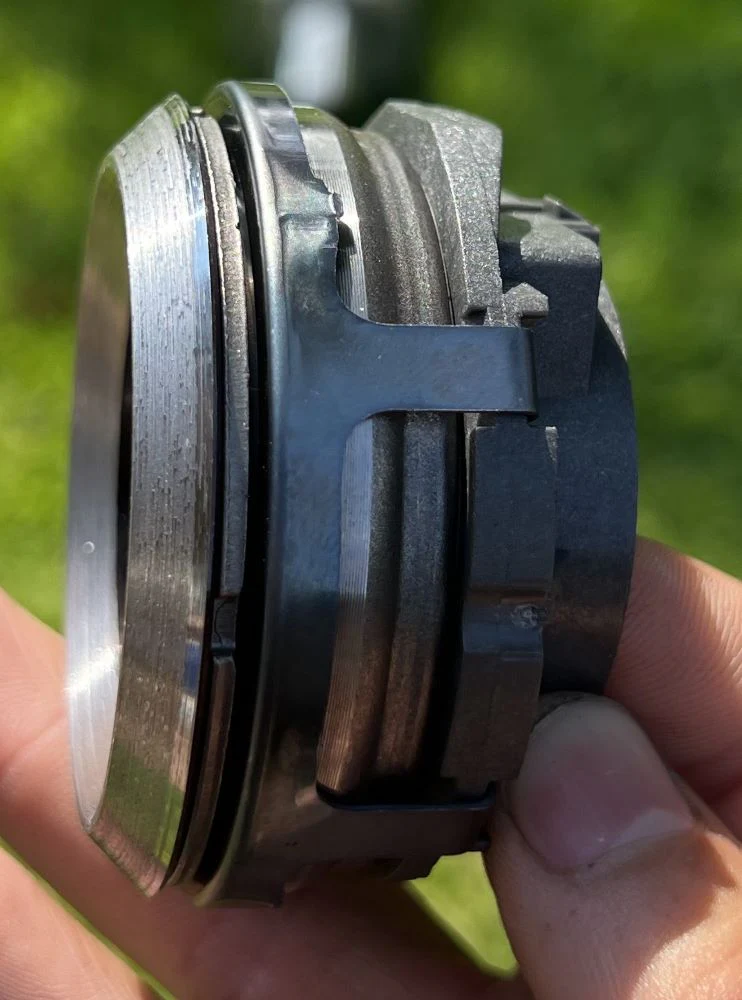

  • Throw-out Bearing
  • Pressure plate bolts
  • Alignment tool

Description

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing.

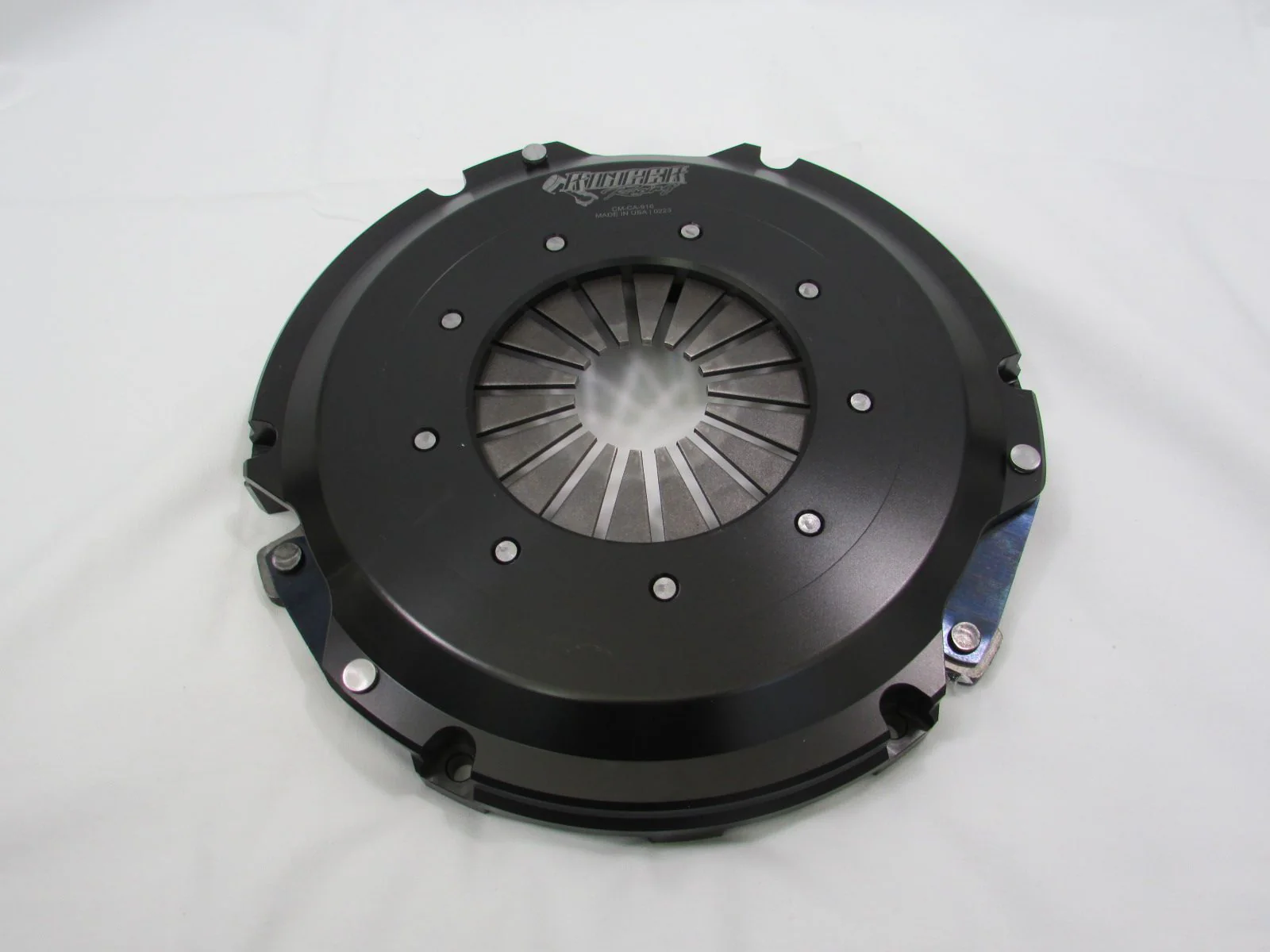

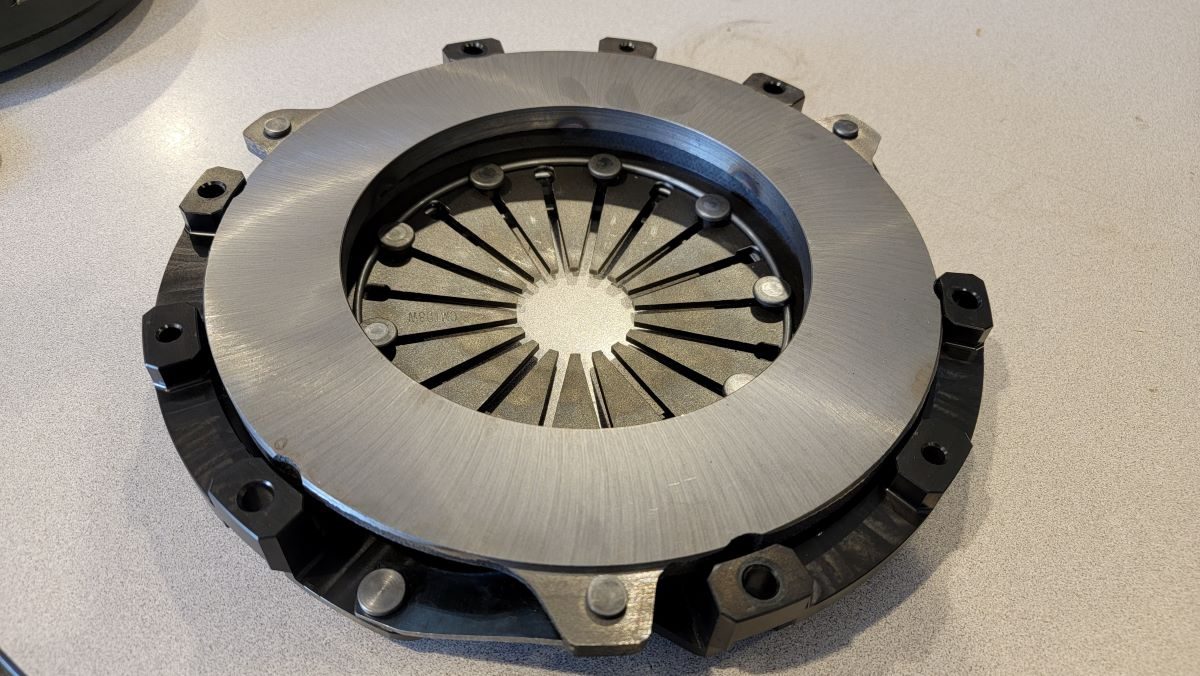

The Ringer Racing Billet Series uses a billet aluminum pressure plate cover combined with choice of 850 diaphragm, these diaphragms have 7-14% more clamp load and hold then the highest holding standard Ringer Racing 240mm clutch kit that uses the XR pressure plate. Making these one of the highest holding single 240mm disk street clutch kits on the market.



Kit includes:

  • Ringer Racing 240mm Billet Series Clutch Kit
  • Throw-out Bearing
  • Pressure plate bolts
  • Alignment tool



Stage 2

  • Daily Street Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting

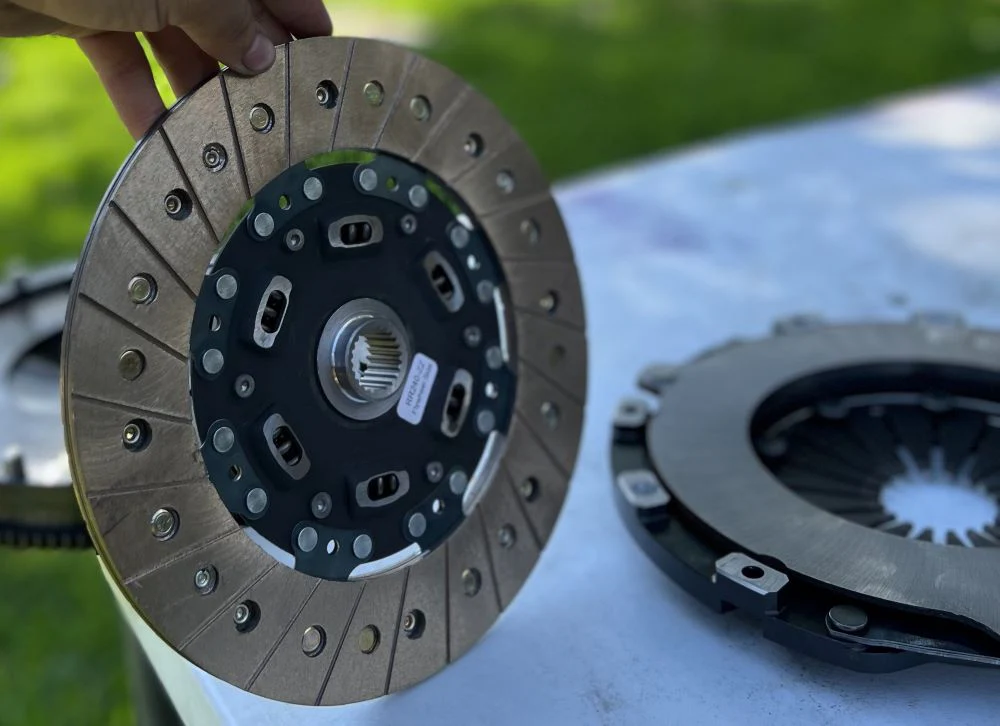

  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic Material on both sides
  • Blue Diaphragm


Stage 2+

  • Daily Street Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic Material on both sides
  • White Diaphragm – Increased clamp load and pedal resistance


Stage 3

  • Street Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametalic Material
  • Blue Diaphragm


Stage 3+

  • Street Cutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametalic Material
  • White Diaphragm – Increased clamp load and pedal resistance


Stage 4

  • Street/Race Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametalic Material on both sides
  • Blue Diaphragm


Stage 4+

  • Street/Race Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametalic Material on both sides
  • White Diaphragm – Increased clamp load and pedal resistance





Torque Rating at the Flywheel

  • Stage 2 – 600 ft lbs
  • Stage 2+ – 645 ft lbs
  • Stage 3 – 845 ft lbs
  • Stage 3+ – 900 ft lbs
  • Stage 4 – 1050 ft lbs
  • Stage 4+ – 1125 ft lbs



Note: Bolt torque specs
  • Pressure plate bolts = 25 ft lbs
  • Dab of loctite on all bolts
Select Ringer Racing Billet Series Clutch Kit
From $411.46

Original: $1,175.60

-65%
Ringer Racing Billet Series Clutch Kit – A4/Passat 1.8t—

$1,175.60

$411.46

Product Information

Shipping & Returns

Description

RR240-BSC

Package includes:

  • Ringer Racing 240mm Billet Series Clutch
  • Throw-out Bearing
  • Pressure plate bolts
  • Alignment tool

Description

This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing.



The Ringer Racing Billet Series uses a billet aluminum pressure plate cover combined with choice of 850 diaphragm, these diaphragms have 7-14% more clamp load and hold then the highest holding standard Ringer Racing 240mm clutch kit that uses the XR pressure plate. Making these one of the highest holding single 240mm disk street clutch kits on the market.



Kit includes:

  • Ringer Racing 240mm Billet Series Clutch Kit
  • Throw-out Bearing
  • Pressure plate bolts
  • Alignment tool



Stage 2

  • Daily Street Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic Material on both sides
  • Blue Diaphragm


Stage 2+

  • Daily Street Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic Material on both sides
  • White Diaphragm – Increased clamp load and pedal resistance


Stage 3

  • Street Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Ductile Iron Casting
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametalic Material
  • Blue Diaphragm


Stage 3+

  • Street Cutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Steel backed Organic/Cerametalic Material
  • White Diaphragm – Increased clamp load and pedal resistance


Stage 4

  • Street/Race Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametalic Material on both sides
  • Blue Diaphragm


Stage 4+

  • Street/Race Clutch
  • Heavy-Duty Billet Aluminum pressure plate cover
  • Hi-Leverage pressure ring design
  • Sprung hub/cushioned Steel backed disc
  • Full Face Cerametalic Material on both sides
  • White Diaphragm – Increased clamp load and pedal resistance





Torque Rating at the Flywheel

  • Stage 2 – 600 ft lbs
  • Stage 2+ – 645 ft lbs
  • Stage 3 – 845 ft lbs
  • Stage 3+ – 900 ft lbs
  • Stage 4 – 1050 ft lbs
  • Stage 4+ – 1125 ft lbs



Note: Bolt torque specs
  • Pressure plate bolts = 25 ft lbs
  • Dab of loctite on all bolts
