Ringer Racing 240mm Clutch/Flywheel Kit – 2.5 longitude swap
RR240-8SF
PLEASE CONTACT TO CHOOSE OPTIONS AND ORDER
Kit includes:

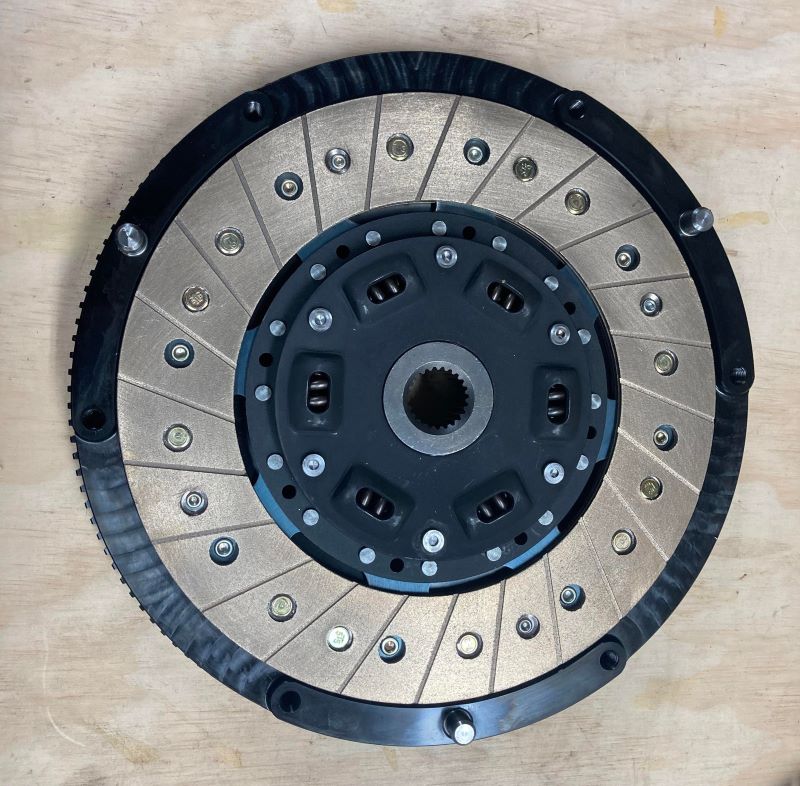

- Ringer Racing Clutch
- Steel Flywheel
- Throw-out Bearing
- Alignment tool
- Flywheel/PP Bolts
Description
This is a Private Label kit built by Clutch Masters exclusively for Ringer Racing
Â
Kit includes:
- Ringer Racing Clutch Kit

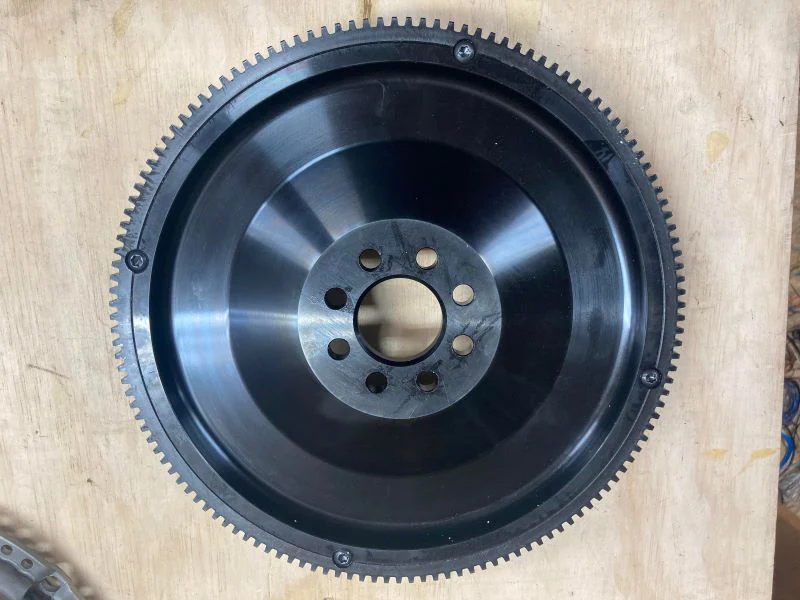

- CM 18.5 lb Billet Steel Flywheel
- Throw-out Bearing
- Alignment tool
- Flywheel/PP Bolts
Â
Stage 3
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic/Cerametalic Material
- OEM Pedal feel
Stage 3+
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic/Cerametalic Material
- Slightly stiffer pedal then Stage 3 and stage 4
- Note: Stage 3 disk with Stage 5 pressure plate
Stage 4
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
- OEM Pedal feel
Stage 5
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
- Stiffer than stock pedal feel
Stage 5+
- Modified Stage 5 pressure plate for 8% more clamping load
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
- Slightly stiffer pedal then the stage 5
Â
Flywheel options:
- 6 bolt for 07k 2.5 NA engine
- 8 bolt for 2.5 TTRS/RS3 engine or crank in a 07K block
Â
Torque Rating at the Flywheel
- Stage 3 – 585 ft lbs
- Stage 3+ – 700 ft lbs
- Stage 4 – 840 ft lbs
- Stage 5 – 925 ft lbs
- Stage 5+ – 1000 ft lbs
Â
Note: Bolt torque specs:
- Dab of loctite on all
- 10.9 or ARP flywheel bolts – 45 ft lb, 65 lb and then finish at 85 ft lb
- Pressure plate bolts – 25 ft lb
Note:Â ARP bolts are the latest version of custom CM/ARP 2000 flywheel bolts which also come pre-drilled for safety wire use.
Â
*Flywheel Friction Locks
Keep your high-performance engine protected with Flywheel Friction Locks or FFLs for short, by Clutch Masters. Designed to prevent costly damage that can occur when a flywheel comes loose, the Flywheel Friction Lock uses an advanced nickel-coated steel substrate with partially embedded diamond particles to create an extra layer of vastly increased friction between the flywheel and crank. This innovative solution minimizes your risk of the flywheel welding itself to the crankshaft if it comes loose, which can save you from extensive repairs or even crankshaft replacement.
Whether you’re driving a racing car or a tuned street vehicle, having a secure flywheel is essential for maintaining peak performance. By installing the Flywheel Friction Lock, you safeguard your engine’s crank against wear and tear for a smoother, more reliable driving experience. With precision engineering and trusted durability, Clutch Masters’ Flywheel Friction Lock is the smart investment every car enthusiast needs to truly protect their powertrain.
Don’t wait for damage to wreak havoc on your vehicle. Upgrade with Flywheel Friction Locks today and drive with confidence.
