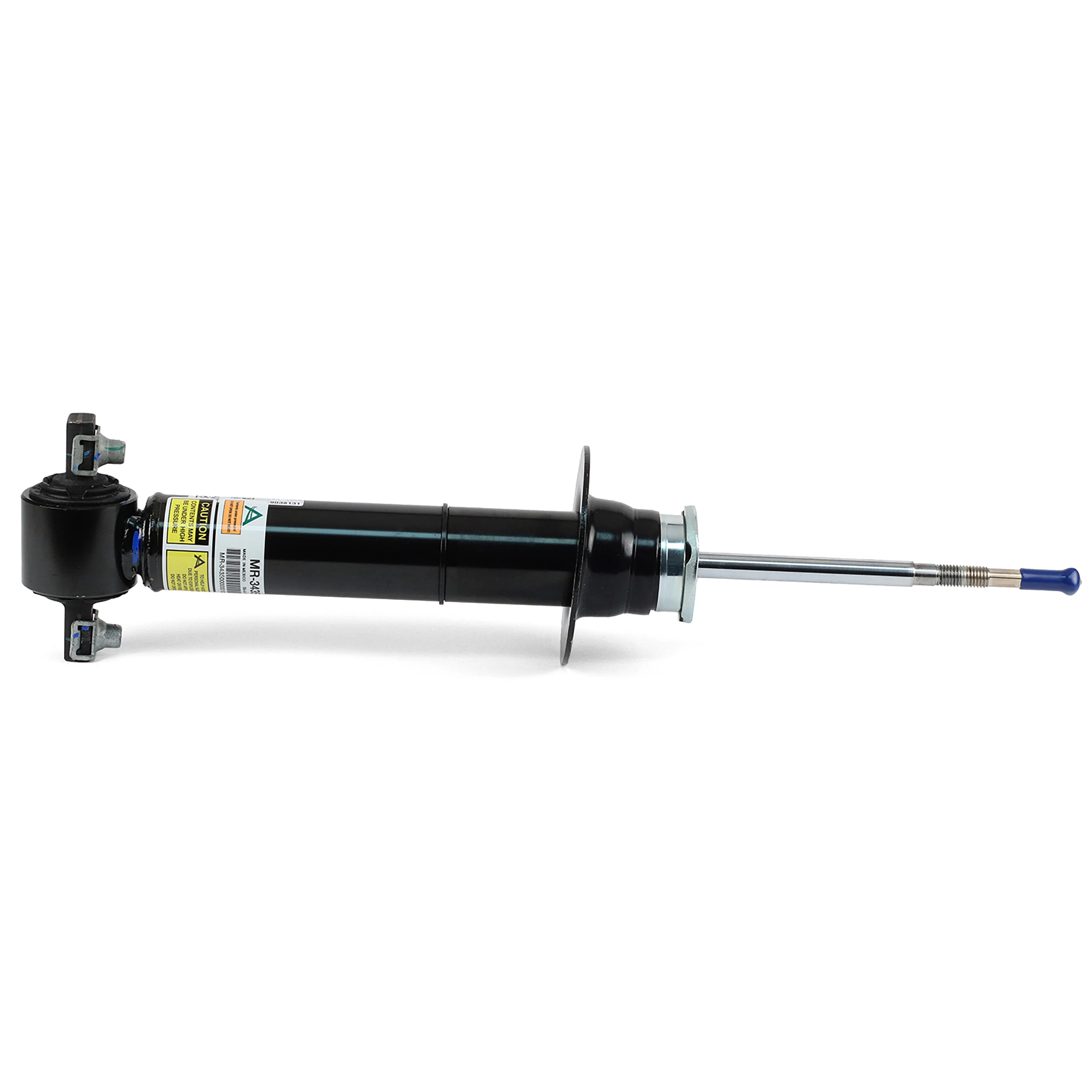

Magnetic Strut Front 07-14 Cadillac, Chevrolet, GMC SUVs (GMT9xx) - SWB/LWB, w/MagneRide

Magnetic Strut Front 07-14 Cadillac, Chevrolet, GMC SUVs (GMT9xx) - SWB/LWB, w/MagneRide

MR-3435

Magnetic Suspension Strut

MR-3435 is an OES front left or right magnetic strut for long and short wheelbase 2007-2014 GM SUVs (GMT9XX Platform) equipped with the GM magnetorheological damper system (Z95 RPO). This magnetically controlled strut from Arnott provides the same highly adaptive ride as the OE. The monotube damper is filled with magnetorheological fluid which is a synthetic hydrocarbon oil that contains iron particles that are easily magnetized. The damper includes two electromagnetic coils which, when turned on, instantly change the bonds between the magnetized iron particles to alter the viscosity and stiffness of the suspension. Arnotts new universal magnetic strut, which fits the left or right side, connects to the vehicles ECU with no modifications. WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

  • Exclusively for GM SUVs (GMT9XX Platform)
  • Direct replacement for GM magnetic strut
  • OES design & components
  • Connects to ECU
  • Installation manual available
  • Fits short & long wheelbase vehicles with Z95 RPO
  • Universal strut fits left or right side
  • Replace in Pairs
Active Or Passive Suspension: Active
Adjustable: No
Adjustable Damping: Yes
Adjustable Rebound: No
Air Adjustable: No
Air Bladder: No
Air Bladder Material: N/A
Air Ride Suspension: No
Bearing Plate Included: No
Body Color: N/A
Body End Measuring Point: Center Eye
Boot Color: N/A
Boot Included: N/A
Coil Over Springs Included: N/A
Compressed Length: 379.98 (mm)
Extended Length: 452.88 (mm)
Grade Type: Standard
Heavy Duty Crimping Rings: N/A
Internal Construction Type: Monotube
Lower Mount Type: Cross Pin
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: No
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Shock/strut Color: Black
Spring Isolators Included: No
Spring Rate Type: Linear
Spring Seat Included: Yes
Springs Included: No
Travel Length: 72.9 (mm)
Upper Mount Type: Stud
Upper Mounting Isolator Included: No
Make Model Year
Cadillac Escalade 2007-2014
Cadillac Escalade ESV 2007-2014
Cadillac Escalade EXT 2007-2013
Chevrolet Suburban 2014
Chevrolet Suburban 1500 2007-2014
Chevrolet Tahoe 2007-2014
GMC Yukon 2007-2014
GMC Yukon XL 1500 2007-2014

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
19300066 General Motors
19353951 General Motors
25940740 General Motors
