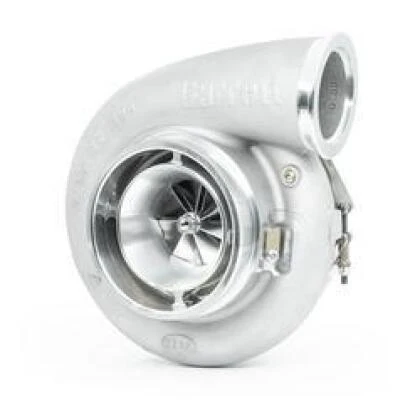

Garrett G-XRace GXR42-71 71mm DTA-Light Super Core

G-XRACE UNIVERSAL PERFORMANCE TURBOCHARGER

GXR42-71 | 71mm Turbine

• XBoost technology increases power and performance. This turbocharger is raged up to 1300 brake horsepower
• Increased efficiency at high flow rates provides cooler, denser air to boost power capability
• Lightweight aluminum backplate to reduce turbo weight
• Flange-style speed sensor port for easy installation and turbo speed monitoring for optimal performance and turbo life
• GXR42-71 952766-5006S is for use in the DTA Light drag race class with the 71mm compressor inducer rule
• Water fittings included
• Patented design*

Competitor Frame Size Reference: 7175 (71mm compressor inducer / 75mm turbine exducer)

Read About Turbo System Optimization: A guide to setting up your turbocharger

WARNING: Maximum allowable turbocharger speed is 120krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
