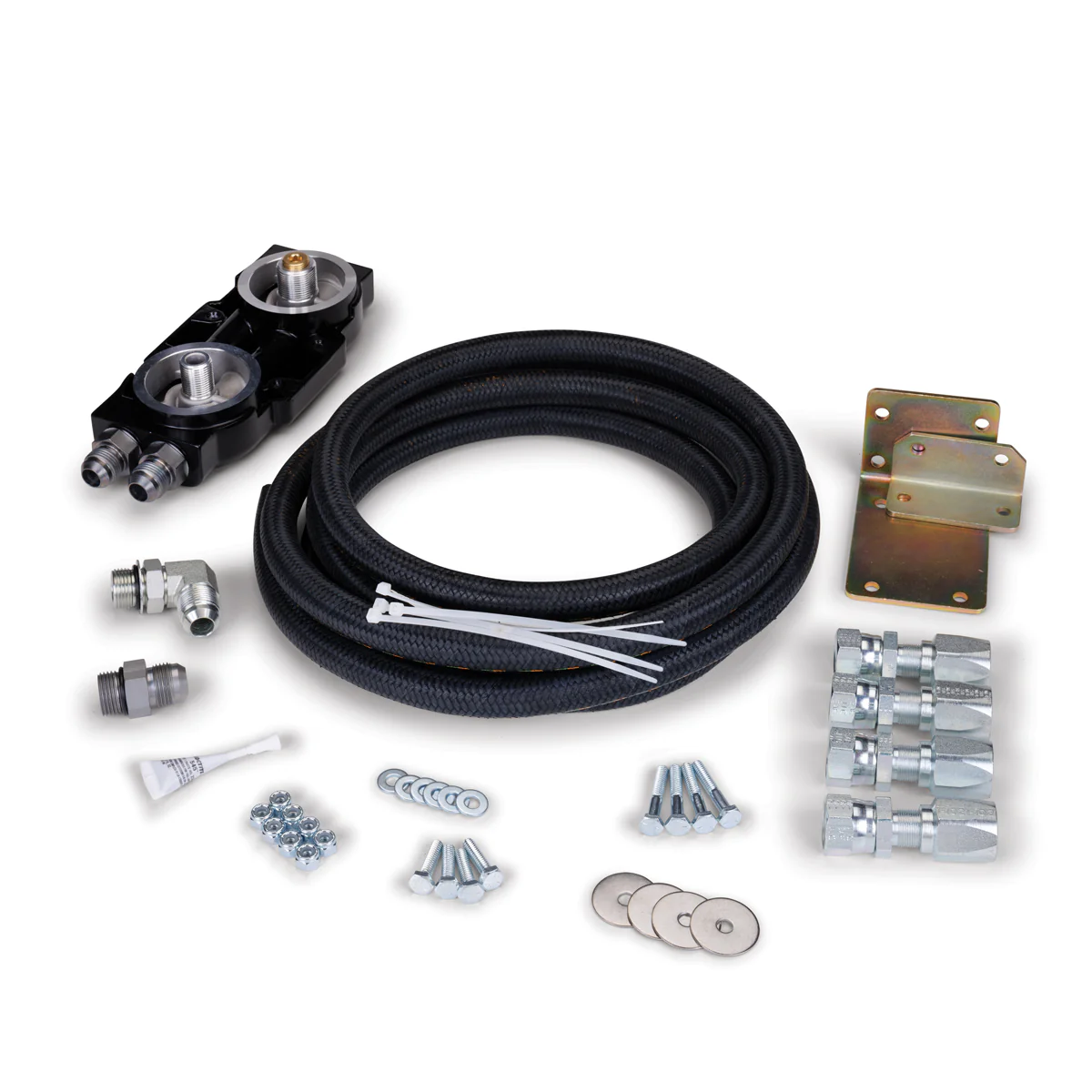

AMSOIL Universal Dual-Remote Bypass System Each
BMK23-EA
BMK23 Installation and Servicing Instructions
The Bypass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine's full-flow oil filter, the AMSOIL Ea Bypass Filter operates by filtering oil on a "partial-flow" basis. It draws approximately 10 percent of the oil pump's capacity at any one time and traps the extremely small, wear-causing contaminants that full-flow filters can't remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.
Filter Service Intervals
Ea Bypass Filters offer long service life. Do not exceed the limits listed in the chart below.
| Ā | EaBP90 | EaBP100 | EaBP110 |
| Mileage | 60,000 | 70,000 | 80,000 |
| Hours | 600 | 800 | 1,200 |
| Time | 2 years | 2 years | 2 years |
Ā
|
THREAD ADAPTERS
|
||
| If your equipment uses this AMSOIL Filter |
This is the thread used on that equipment | Use this adapter |
| EAO11 | M22 x 1.5 | BK299 |
| EAO15 | 3/4 - 16 | BK295 |
| EAO17 | M22 x 1.5 | BK299 |
| EAO24 | 13/16 - 16 | BK302 |
| EAO26 | 3/4 - 16 | BK295 |
| EAO34 | 3/4 - 16 | BK295 |
| EAO42 | 3/4 - 16 | BK295 |
| EAO52 | 13/16 - 16 | BK302 |
| EAO59 | 13/16 - 16 | BK302 |
| EAO98 | 1 - 16 | BK300 |
| EAO99 | 1 1/2 - 16 | BK301 |
| EA15K50 | M22 x 1.5 | BK299 |
| EA15K51 | 3/4 - 16 | BK295 |
| EA15K53 | 3/4 - 16 | BK295 |
| 2008 ā present CHEVROLET 1500 and 2500 GAS except 2019 and newer 5.3L ENGINES | M22 x 1.5 | BK310 |
*If you Don't see your AMSOIL Filter in this thread adapters table, please use the BMK21 Bypass System instead.
