Remanufactured Air Strut Front Right 13-22 Land Rover Range Rover (L405) - w/VDS/CVD

AS-3067

Remanufactured Air Suspension Strut

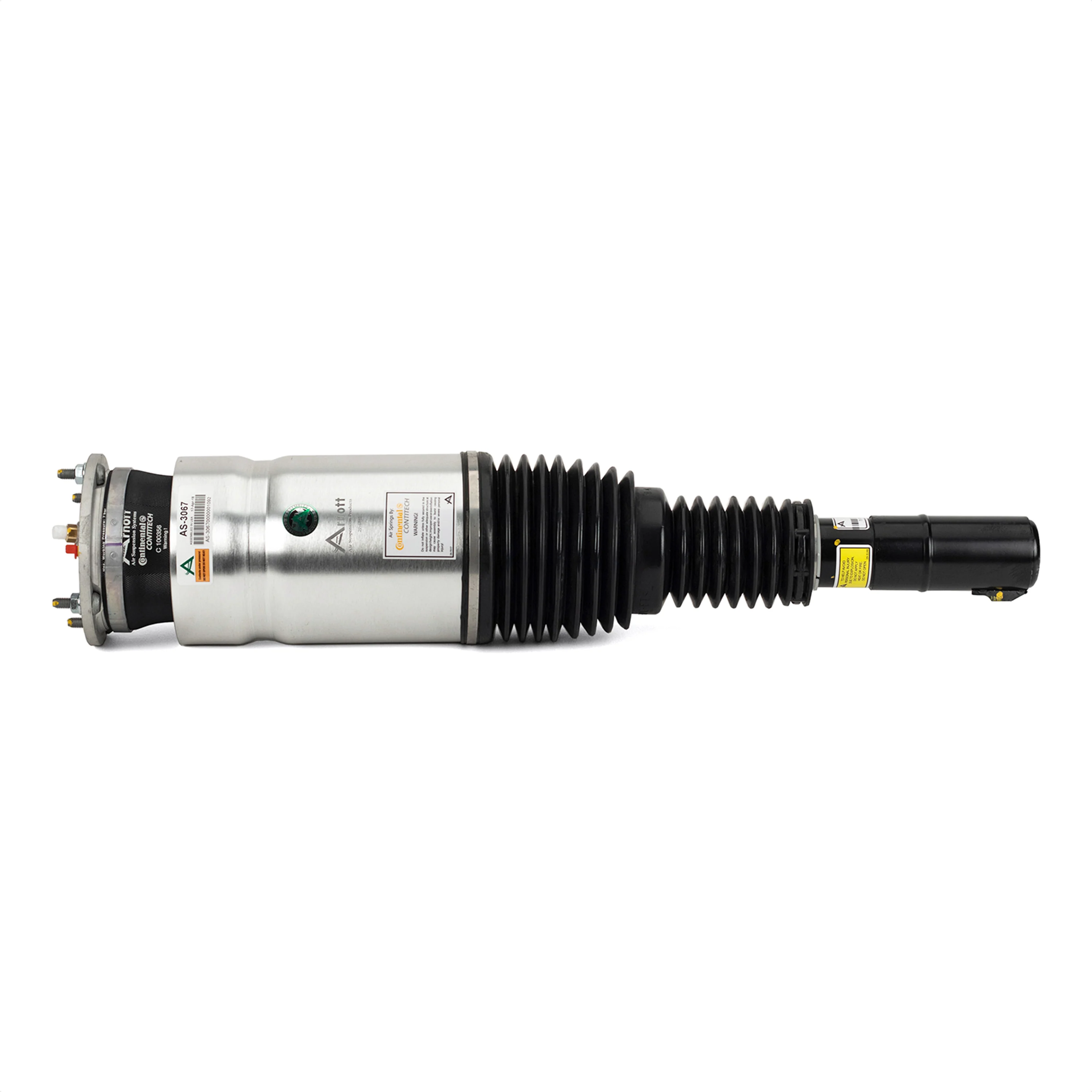

Arnotts AS-3067 is a completely remanufactured O.E. front right strut for the 2013-2022 Land Rover Range Rover L405 Chassis. Each Land Rover strut is painstakingly tested, disassembled, cleaned, recharged, painted and rebuilt from the ground up. The Arnott remanufactured strut features a new multi-ply rubber air bladder manufactured by Continental ContiTech along with dust boots, protective aluminum can, heavy duty crimping rings, O-Rings, and new air fitting. The Arnott remanufactured strut design is not only more efficient, but it’s also much more affordable! All Arnott remanufactured struts are designed to work with the vehicle’s auto leveling suspension controls.

Remanufactured and Tested in the USA
Pre-Assembled for Easy Installation
Detailed Installation Manual Available
Replace in Pairs

Adjustable Compression:	No

Adjustable Damping:	Yes

Air Adjustable:	Yes

Air Ride Suspension:	Yes

Bearing Plate Included:	No

Bladder Heavy Duty Crimping Rings Included:	Yes

Body End Measuring Point:	Center Eye

Boot Color:	Black

Boot Included:	Yes

Coil Over Springs Included:	N/A

Gas Charged:	Yes

Internal Damper Type:	Hydraulic

Lower Mount Type:	Base Cup

Lower Mounting Isolator Included:	No

Mounting Hardware Included:	Yes

New Or Remanufactured:	Remanufactured

Progressive Spring Rate:	Yes

Shock Absorber Rod End Measuring Point:	Shoulder of Stud

Shock Spring Assisted:	Yes

Spring Isolators Included:	Yes

Spring Rate Type:	Progressive

Spring Seat Included:	No

Springs Included:	N/A

Upper Mount Type:	Stud

Upper Mounting Isolator Included:	Yes

Make	Model	Year
Land Rover	Range Rover	2013-2022

Interchange is provided as a reference. Please check part specifications to verify fit.

Reference Number	Reference Name
LR038801	Land Rover
LR038803	Land Rover
LR052774	Land Rover
LR057251	Land Rover
LR060135	Land Rover
LR072447	Land Rover
LR087081	Land Rover
