Air Strut Front Right 03-12 Land Rover Range Rover (L322) - w/o VDS/CVD AS-3088 Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC & ADS, Excl. AMG

Air Strut Front Right 03-12 Land Rover Range Rover (L322) - w/o VDS/CVD AS-3088 Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC & ADS, Excl. AMG

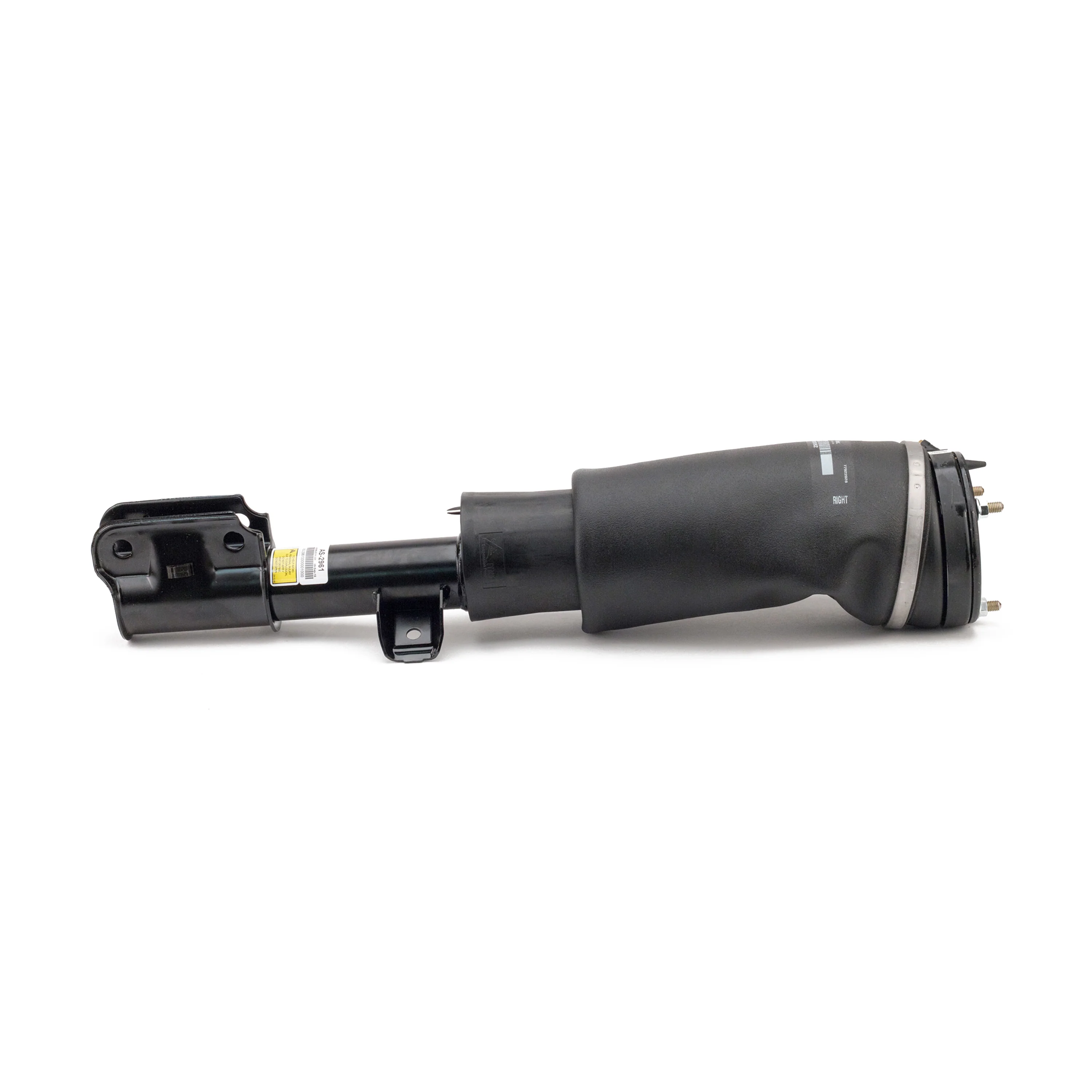

AS-2961

Suspension Strut Assembly

New Air Suspension Strut

The Arnott designed new front strut for the 2003-2012 L322, MK-III, Vogue Range Rove, part AS-2961 (RF) and AS-2962 (LF), is new and not remanufactured. Arnotts exclusive design features a new custom-made and tuned shock absorber valved for a smooth yet responsive ride. These new struts are assembled in the USA with a multi-ply air spring bladder manufactured by Vibracoustic. The strut assembly also features extra-heavy duty crimping rings, new seals, air fitting and check valve along with a stamped steel top.

  • Vibracoustic Multi-Ply Air Bladder
  • Black Anodized Steel Top
  • Heavy-Duty Crimping Rings
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Land Rover Range Rover 2003-2012

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
45-240720 Land Rover
LR032563 Land Rover
RNB000060 Land Rover
RNB000740 Land Rover
RNB500540 Land Rover
RNB501340 Land Rover
RNB501400 Land Rover
RNB501520 Land Rover
$668.33
Air Strut Front Right 03-12 Land Rover Range Rover (L322) - w/o VDS/CVD AS-3088 Air Strut Front 07-12 Mercedes-Benz GL-Class (X164), 06-11 ML-Class (W164) - w/AIRMATIC & ADS, Excl. AMGā€”
$668.33

Product Information

Shipping & Returns

Description

AS-2961

Suspension Strut Assembly

New Air Suspension Strut

The Arnott designed new front strut for the 2003-2012 L322, MK-III, Vogue Range Rove, part AS-2961 (RF) and AS-2962 (LF), is new and not remanufactured. Arnotts exclusive design features a new custom-made and tuned shock absorber valved for a smooth yet responsive ride. These new struts are assembled in the USA with a multi-ply air spring bladder manufactured by Vibracoustic. The strut assembly also features extra-heavy duty crimping rings, new seals, air fitting and check valve along with a stamped steel top.

  • Vibracoustic Multi-Ply Air Bladder
  • Black Anodized Steel Top
  • Heavy-Duty Crimping Rings
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Land Rover Range Rover 2003-2012

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
45-240720 Land Rover
LR032563 Land Rover
RNB000060 Land Rover
RNB000740 Land Rover
RNB500540 Land Rover
RNB501340 Land Rover
RNB501400 Land Rover
RNB501520 Land Rover
