Remanufactured Air Strut Rear Left 04-10 Audi A8 (D3) - w/o Sport Suspension AS-3074 Air Strut Rear Left 01-06 Lexus LS 430 (UCF30)

Remanufactured Air Strut Rear Left 04-10 Audi A8 (D3) - w/o Sport Suspension AS-3074 Air Strut Rear Left 01-06 Lexus LS 430 (UCF30)

AS-2959

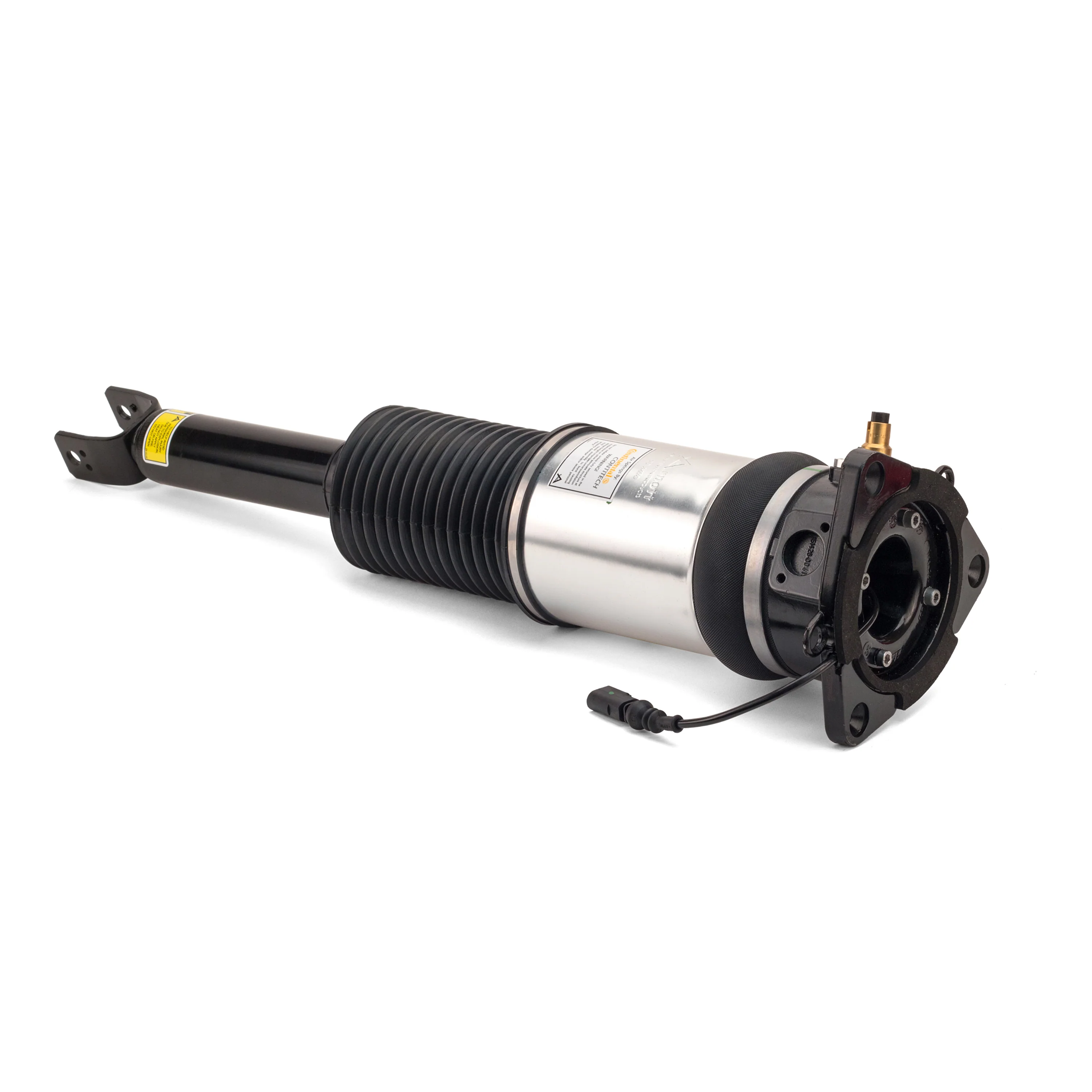

Remanufactured Air Suspension Strut

AS-2959 is an Arnott Remanufactured Air Suspension Struts for the Rear Left side of the 2002-2009 Audi A8 (D3 Chassis) with Normal Suspension. The strut features an Arnott-engineered air spring bladder designed to eliminate the O.E. Reservoir. Remanufactured in the USA, each strut is thoroughly tested, cleaned, repainted and then rebuilt with heavy duty crimping rings, long lasting O-Rings, new connector valve, bump stop and dust cover. This air strut assembly is only for vehicles with Normal Suspension.

  • Remanufactured and Tested in the USA
  • New Valve Connector, Crimping Rings & O-Rings
  • New Protective Can & Dust Cover
  • Detailed Installation Manual Available
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: Yes
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: Remanufactured
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Loop/Eyelet
Upper Mounting Isolator Included: Yes
Make Model Year
Audi A8 Quattro 2004-2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
45-242007 Audi
4E0616001D Audi
4E0616001E Audi
4E0616001G Audi
4E0616001M Audi
4E0616001N Audi
4E0616001Q Audi
4E4616001 Audi
4E4616001A Audi
4E4616001K Audi
$1,103.01
Remanufactured Air Strut Rear Left 04-10 Audi A8 (D3) - w/o Sport Suspension AS-3074 Air Strut Rear Left 01-06 Lexus LS 430 (UCF30)ā€”
$1,103.01
