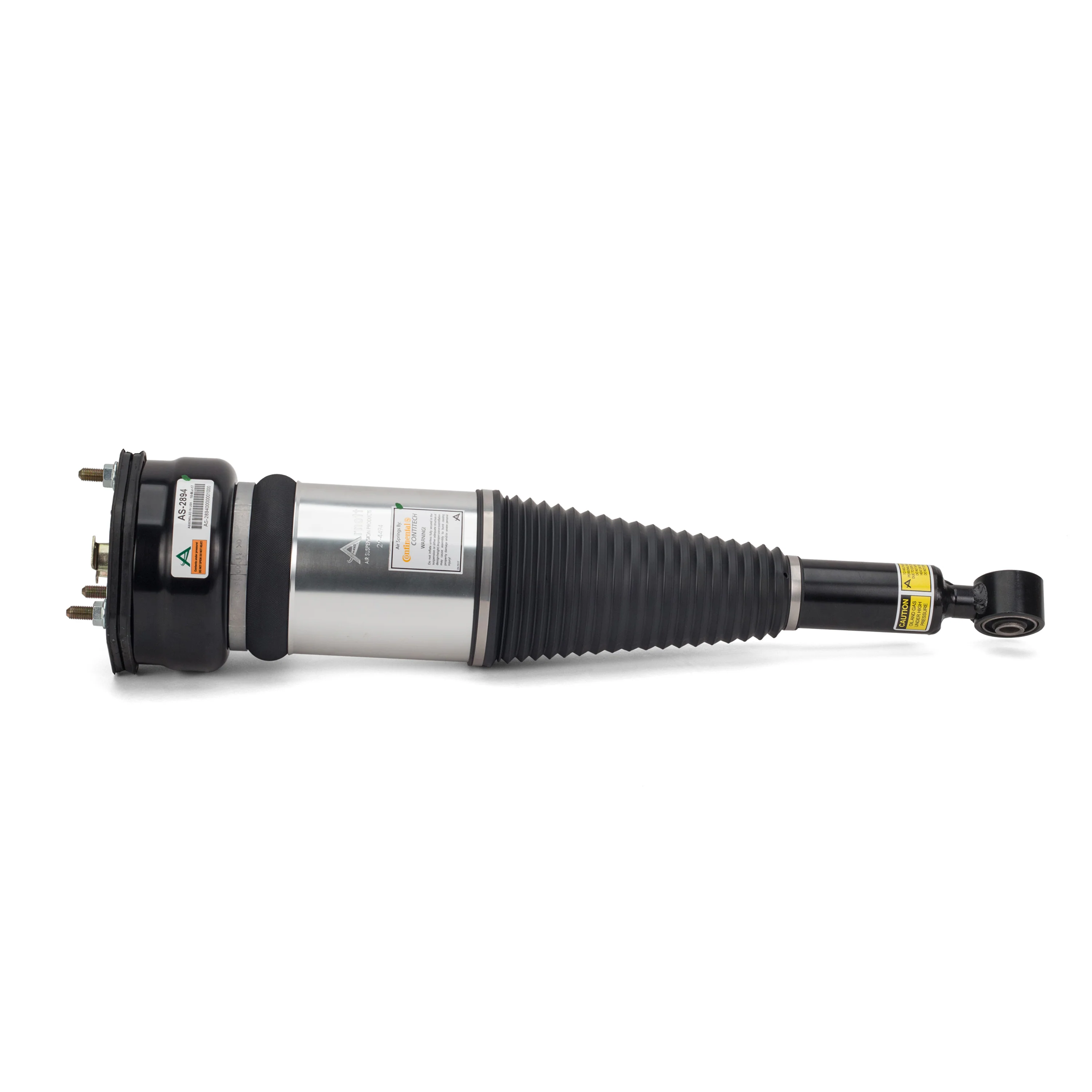

AS-2894

New Air Suspension Strut

AS-2894 is an Arnott engineered new air suspension strut for the front right or left of the 2001-2006 Lexus LS 430 (UF30 Chassis) with the Height Adjustable Suspension option including the LS Ultimate Luxury edition. This new assembly replaces the O.E. strut and features a new, not remanufactured, custom- tuned shock absorber valved to provide the luxury ride LS owners expect. The Arnott strut features a new heavy duty air bladder from ContiTech which is protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum and special rubber coated steel vibration isolator plates. This new air strut is assembled in the USA with Arnotts long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, OE style quick connect air fitting and a dust boot to protect the shock.

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Fits Left or Right
  • Detailed Installation Manual Available
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Loop/Eyelet
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Lexus LS430 2001-2006

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
4801050110 Lexus
4801050120 Lexus
4801050130 Lexus
$696.55
Air Strut Front 01-06 Lexus LS 430 (XF30) AS-3069 Remanufactured Air Strut Front Right 14-22 Land Rover Range Rover Sport (L494) - w/o VDS/CVDā€”
$696.55

Product Information

Shipping & Returns

Description

AS-2894

New Air Suspension Strut

AS-2894 is an Arnott engineered new air suspension strut for the front right or left of the 2001-2006 Lexus LS 430 (UF30 Chassis) with the Height Adjustable Suspension option including the LS Ultimate Luxury edition. This new assembly replaces the O.E. strut and features a new, not remanufactured, custom- tuned shock absorber valved to provide the luxury ride LS owners expect. The Arnott strut features a new heavy duty air bladder from ContiTech which is protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum and special rubber coated steel vibration isolator plates. This new air strut is assembled in the USA with Arnotts long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, OE style quick connect air fitting and a dust boot to protect the shock.

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Fits Left or Right
  • Detailed Installation Manual Available
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Loop/Eyelet
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Lexus LS430 2001-2006

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
4801050110 Lexus
4801050120 Lexus
4801050130 Lexus
