Name: Air Strut Rear 05-09 Land Rover Discovery LR3, 10-16 LR4 (L319), 06-13 Land Rover Range Rover Sport (L320) AS-2784 Air Strut Front Left 03-06 Mercedes-Benz S-Class (W220) - w/AIRMATIC & ADS, w/4MATIC
Brand: Park Auto Motorsports
SKU: as-2534
Availability: InStock

🎉 Up to 70% Off Selected ItemsShop Sale

Home Store

Air Strut Rear 05-09 Land Rover Discovery LR3, 10-16 LR4 (L319), 06-13 Land Rover Range Rover Sport (L320) AS-2784 Air Strut Front Left 03-06 Mercedes-Benz S-Class (W220) - w/AIRMATIC & ADS, w/4MATIC

AS-2534

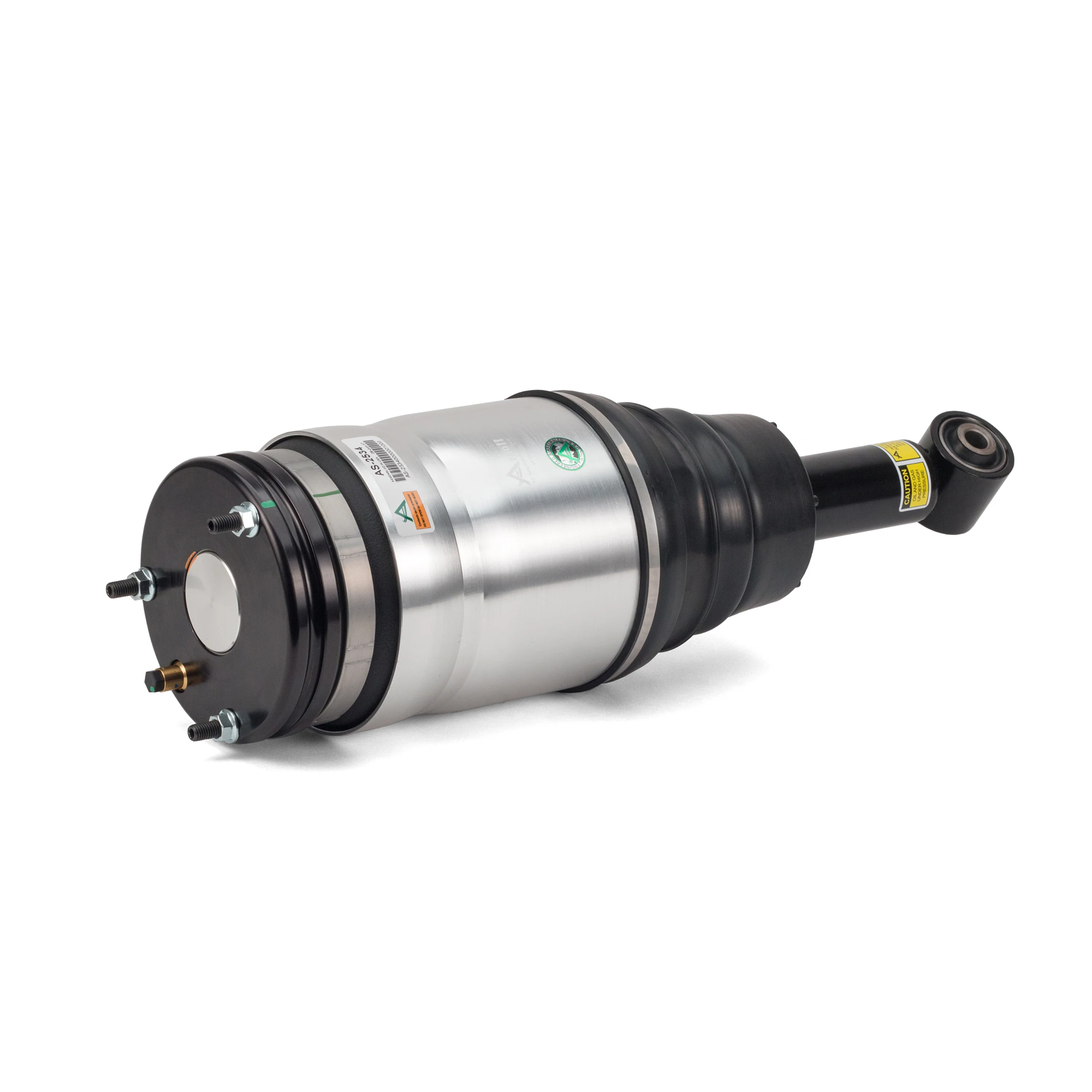

New Air Suspension Strut

Arnotts new rear strut for the 05-09 Land Rover LR3, 10-16 LR4, 2006-2013 Range Rover Sport is new and not remanufactured. This aftermarket Land Rover replacement strut is designed and assembled in the USA. Arnotts exclusive design features a new custom-made and tuned shock absorber and is assembled with a multi-ply air spring bladder manufactured by ContiTech. The strut assembly also features heavy duty crimping rings, new seals, air fitting and dust cover.

ContiTech Multi-Ply Air Bladder
Extra Heavy-Duty Crimping Rings
Replace in Pairs

Adjustable Compression:	No

Adjustable Damping:	No

Air Adjustable:	Yes

Air Ride Suspension:	Yes

Bearing Plate Included:	No

Bladder Heavy Duty Crimping Rings Included:	Yes

Body End Measuring Point:	Center Eye

Boot Color:	Black

Boot Included:	Yes

Coil Over Springs Included:	N/A

Gas Charged:	Yes

Internal Damper Type:	Hydraulic

Lower Mount Type:	Loop/Eyelet

Lower Mounting Isolator Included:	No

Mounting Hardware Included:	Yes

New Or Remanufactured:	New

Progressive Spring Rate:	Yes

Shock Absorber Rod End Measuring Point:	Shoulder of Stud

Shock Spring Assisted:	Yes

Spring Isolators Included:	Yes

Spring Rate Type:	Progressive

Spring Seat Included:	No

Springs Included:	N/A

Upper Mount Type:	Stud

Upper Mounting Isolator Included:	Yes

Make	Model	Year
Land Rover	LR3	2005-2009
Land Rover	LR4	2010-2016
Land Rover	Range Rover Sport	2006-2013

Interchange is provided as a reference. Please check part specifications to verify fit.

Reference Number	Reference Name
LR016418	Land Rover
LR032650	Land Rover
LR038096	Land Rover
LR041110	Land Rover
RPD501020	Land Rover
RPD501100	Land Rover
